Ubiquiti UniFi Gateway Fiber (UCG-Fiber)

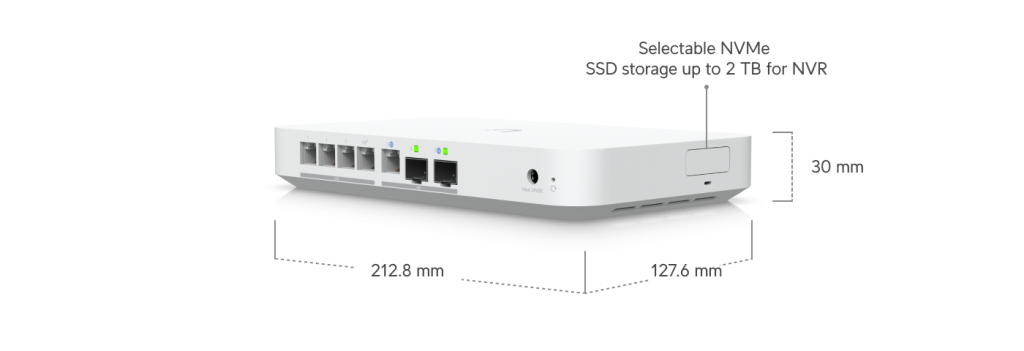

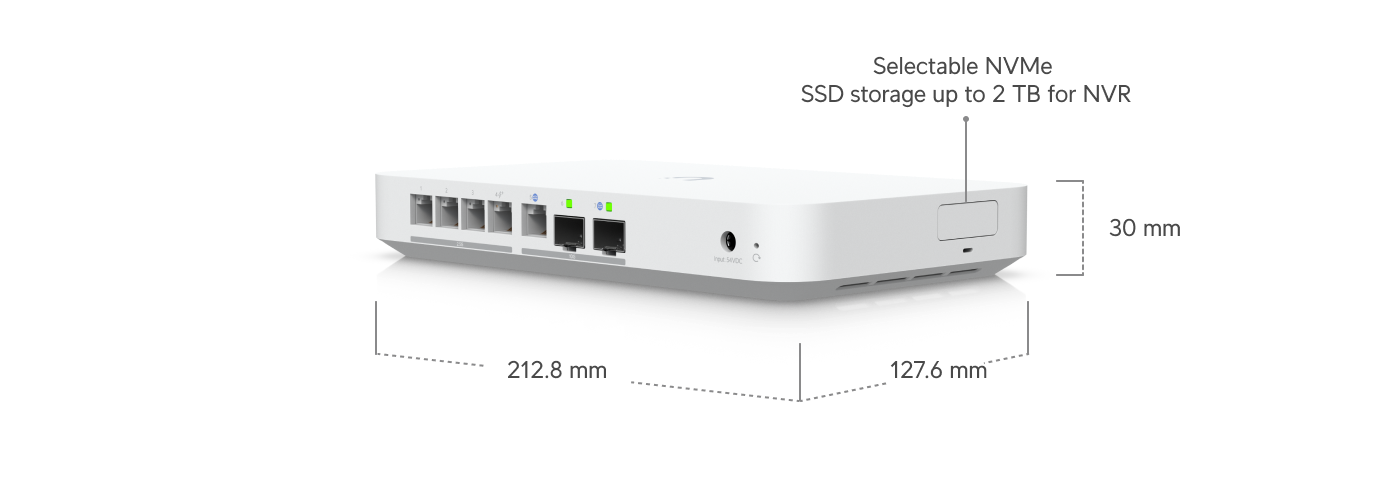

- Dimensions: 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2″)
- UniFi Application Suite:
- Network
- Protect
- Access
- Talk
- Connect
- Managed UniFi Devices: 50+
- Managed Cameras
- (15) HD
- (8) 2K
- (5) 4K
- Managed Access Hub: 50
- Simultaneous Users Connected: 500+
- Max. WAN Port Count: 6
- Default WAN Ports
- (1) 10G SFP+
- (1) 10 GbE RJ45

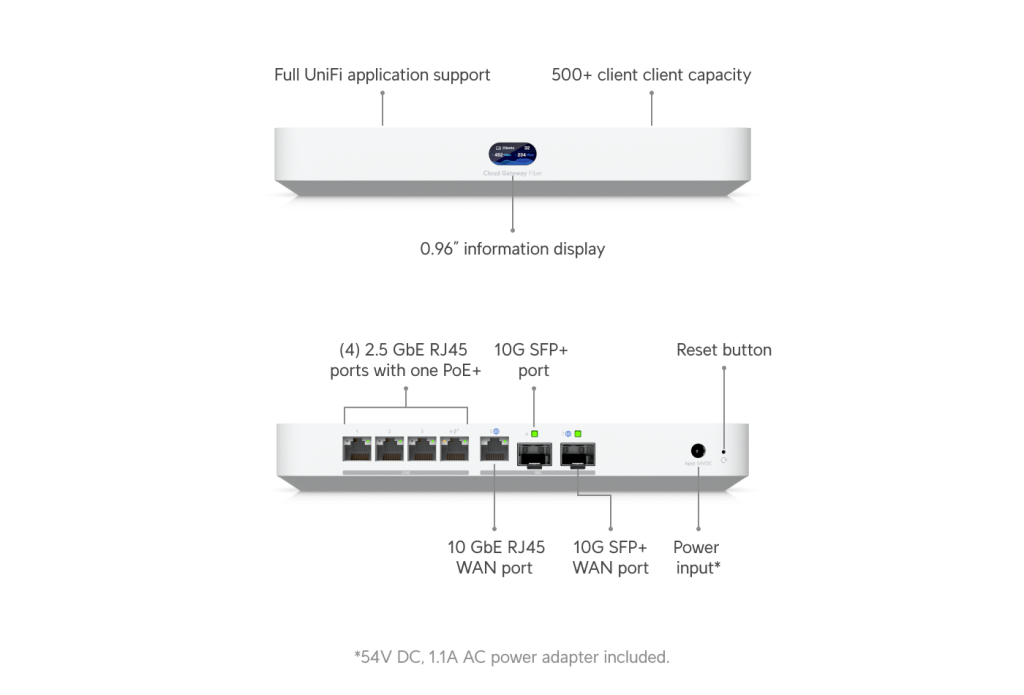

- Port Layout
- 2.5 GbE RJ45: 4 x (2.5G/1G/100M/10M)
- 10 GbE RJ45: 1 x (10G/2.5G/1G)
- 10G SFP+: 2 x (10G/1G)
- IDS/IPS Throughput: 5 Gbps
- Form Factor: Compact desktop
- Security:
- Stateful Firewall: Yes
- Application-Aware Layer 7 Firewall: Yes
- DPI & Traffic Identification: Yes
- Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes
- Content Filtering: Yes
- Intrusion Prevention (IPS/IDS): Yes
- Ad Blocking: Yes
- IDS/IPS Signatures: Yes – 55,000+ with CyberSecure
- VLAN/Subnet-based Traffic Segmentation: Yes
- VPN & SD-WAN
- License-Free SD-WAN: Yes
- Site-to-Site VPN
- Site Magic: Yes
- IPsec: Yes
- OpenVPN: Yes
- VPN Server
- Identity Endpoint One-Click VPN: Yes
- Teleport Zero-Configuration VPN: Yes
- WireGuard: Yes
- OpenVPN: Yes
- L2TP: Yes
- VPN Client
- OpenVPN: Yes
- WireGuard: Yes
- Networking:
- Multi-WAN Load Balancing: Yes
- Dynamic Routing: OSPF: Yes
- Advanced QoS: Yes
- Multicast DNS (mDNS): Yes
- Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes
- Integrated RADIUS Server: Yes
- RADIUS over TLS (RadSec): Yes
- Additional Internet Failover with UniFi LTE Backup: Yes
- Internet Quality and Outage Reporting: Yes
- MAC Address Table Size: 4,000
- Virtual Network Override: Yes
- All Traffic Flows: Yes
- Hardware:
- NVR Storage: Selectable NVMe SSD up to 2 TB
- PoE Budget: 30W
- Voltage Range PoE Mode: 50-57V
- Max. Power Consumption: 29.4W (Excluding PoE output)
- Power Method: DC jack (54V DC/1.1A)
- Power Supply: 54V DC/1.1A (Adapter included)
- Supported Voltage Range: 100–240V AC
- Heat Dissipation: 100 BTU/hr (Excluding PoE Output)
- Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
- System Memory: 3 GB
- Weight
- Without SSD: 675 g (1.5 lb)
- With SSD: 734 g (1.6 lb)
- Enclosure Material: Polycarbonate
- LCD Display: 0.96″ status display
- Management
- Ethernet
- Bluetooth
- LEDs
- Ethernet: Yes
- SFP+: Yes
- Button: (1) Factory reset
- ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
- Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, SRRC, Anatel: 04395-25-08356
