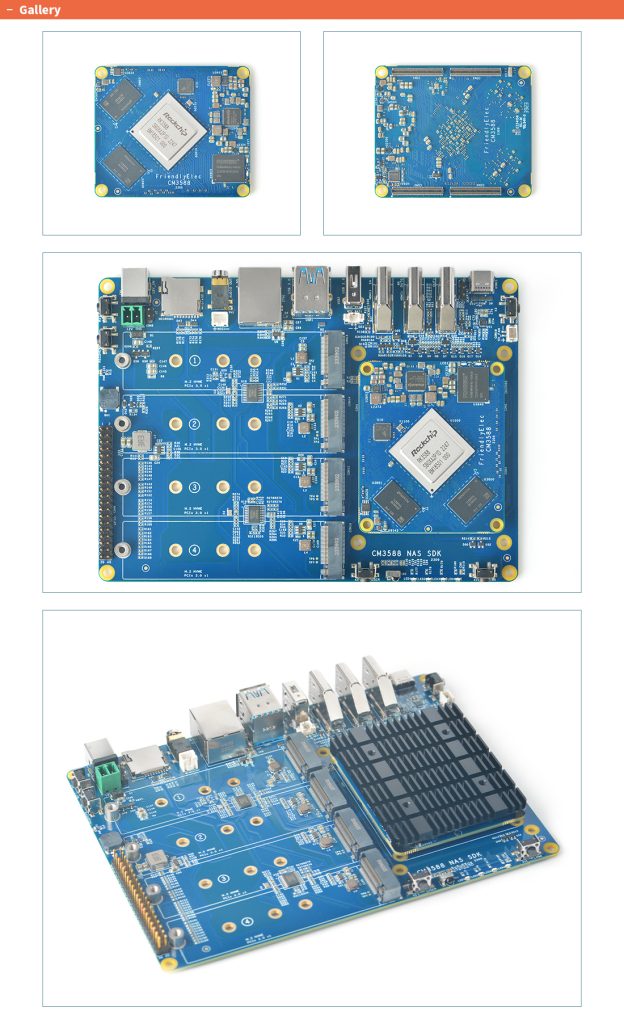

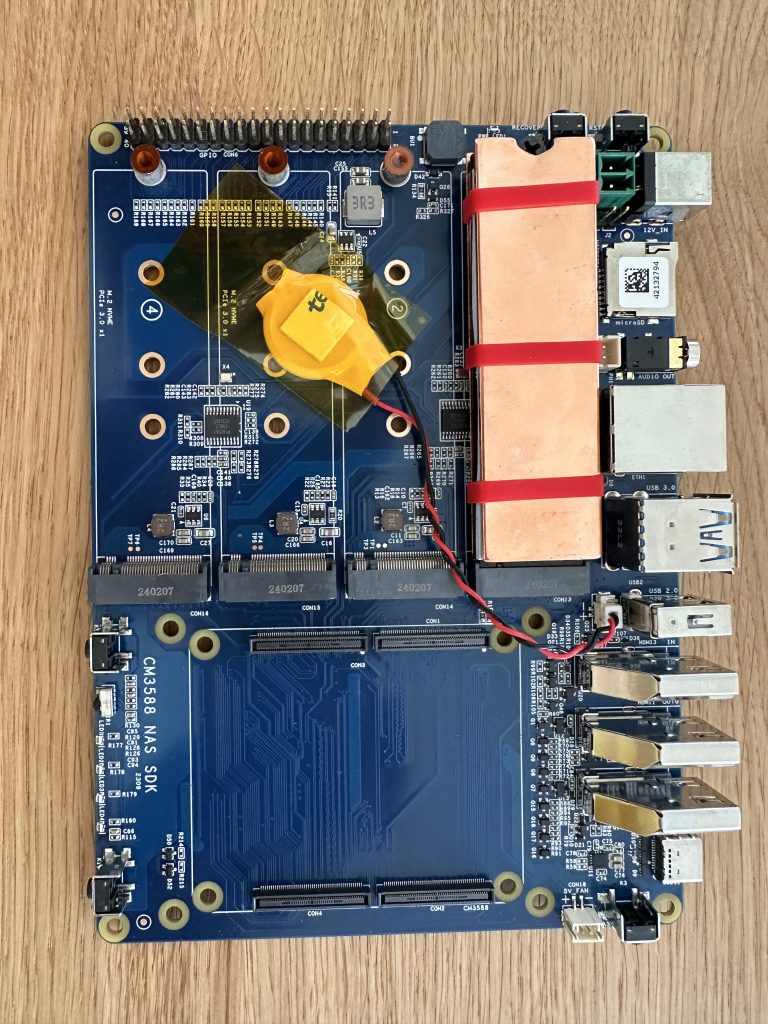

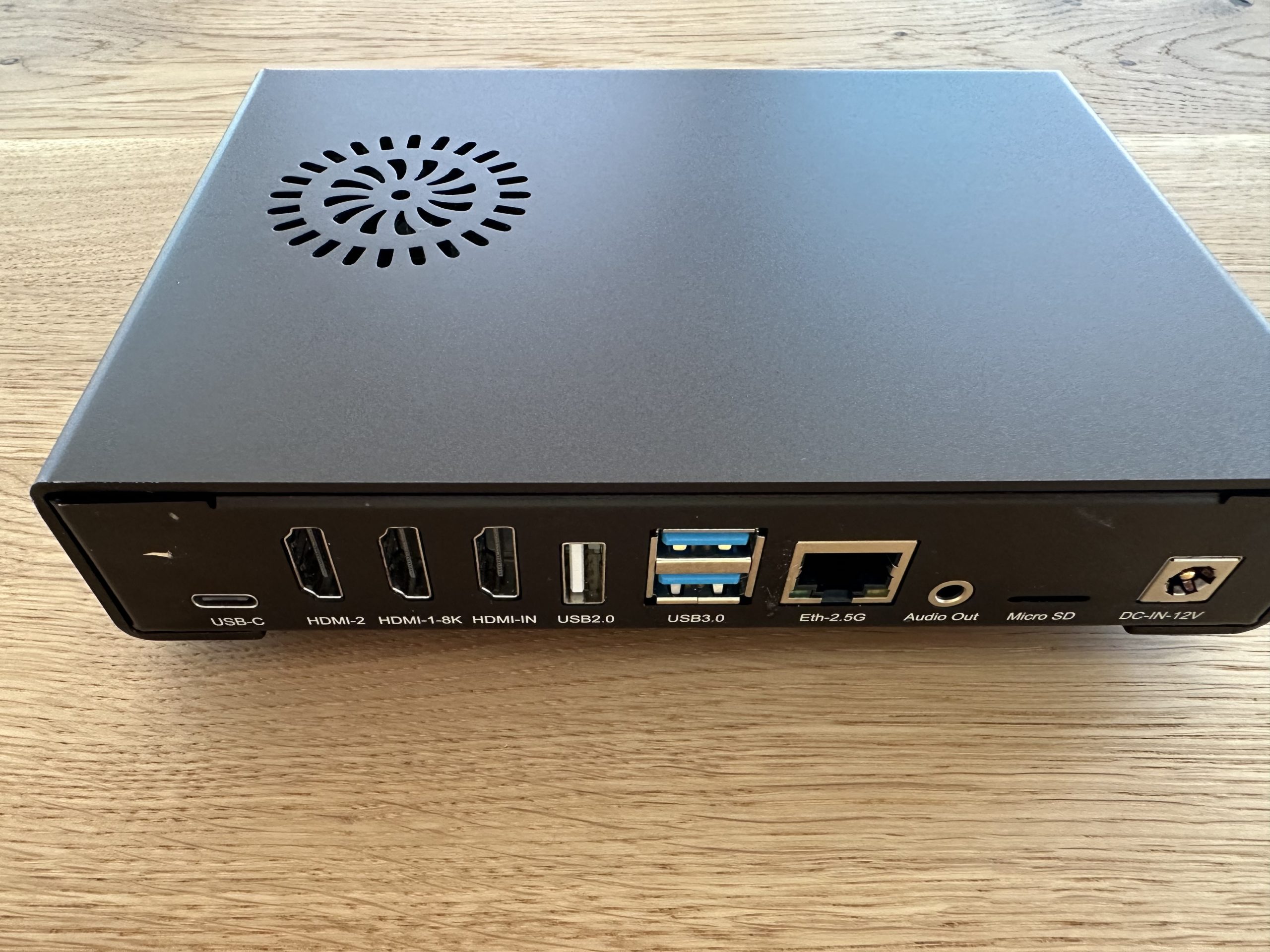

NAS kit Friendly ELEC CM3588 16GB DDR4 64GB eMMC

Server

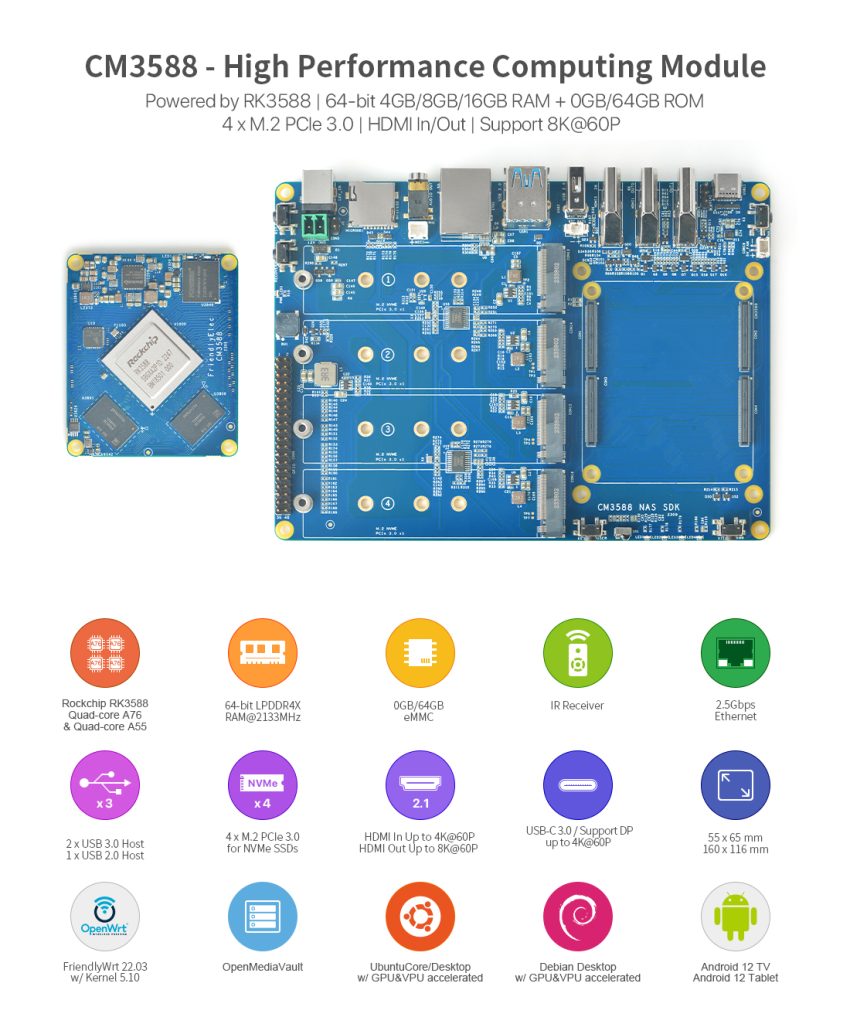

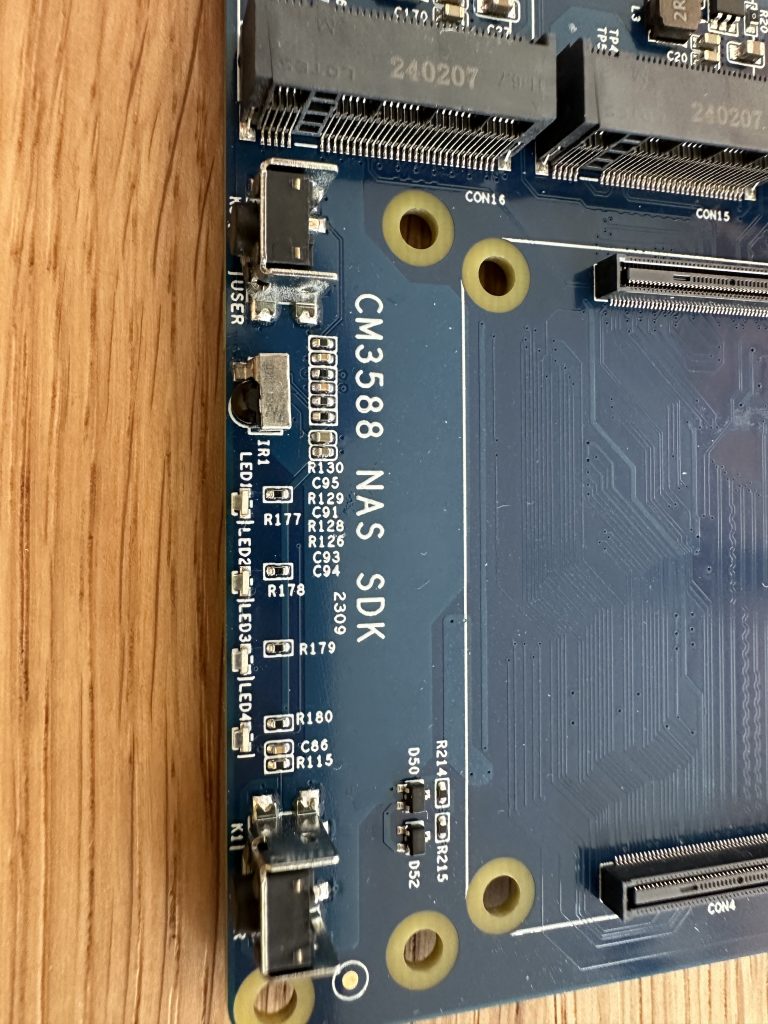

NAS kit Friendly ELEC CM3588 16GB DDR4 64GB eMMC

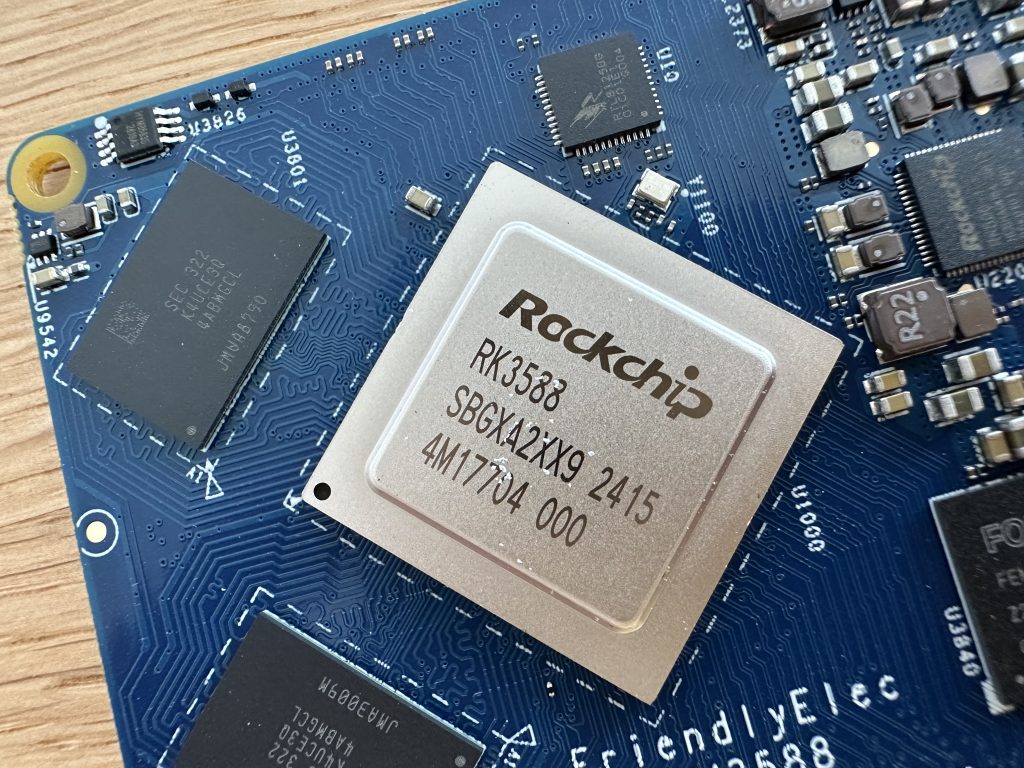

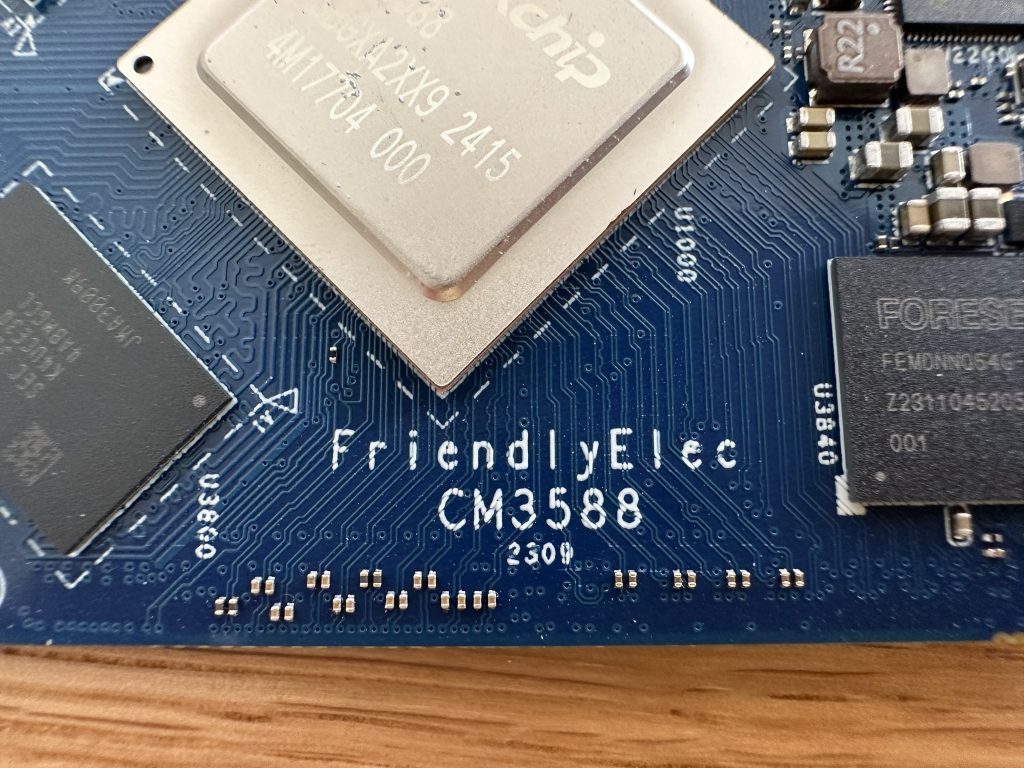

  • SoC: Rockchip RK3588
  • CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
  • GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
  • VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder. 8K@30fps H.264 and H.265 encoder
  • NPU: 6TOPs, supportS INT4/INT8/INT16/FP16

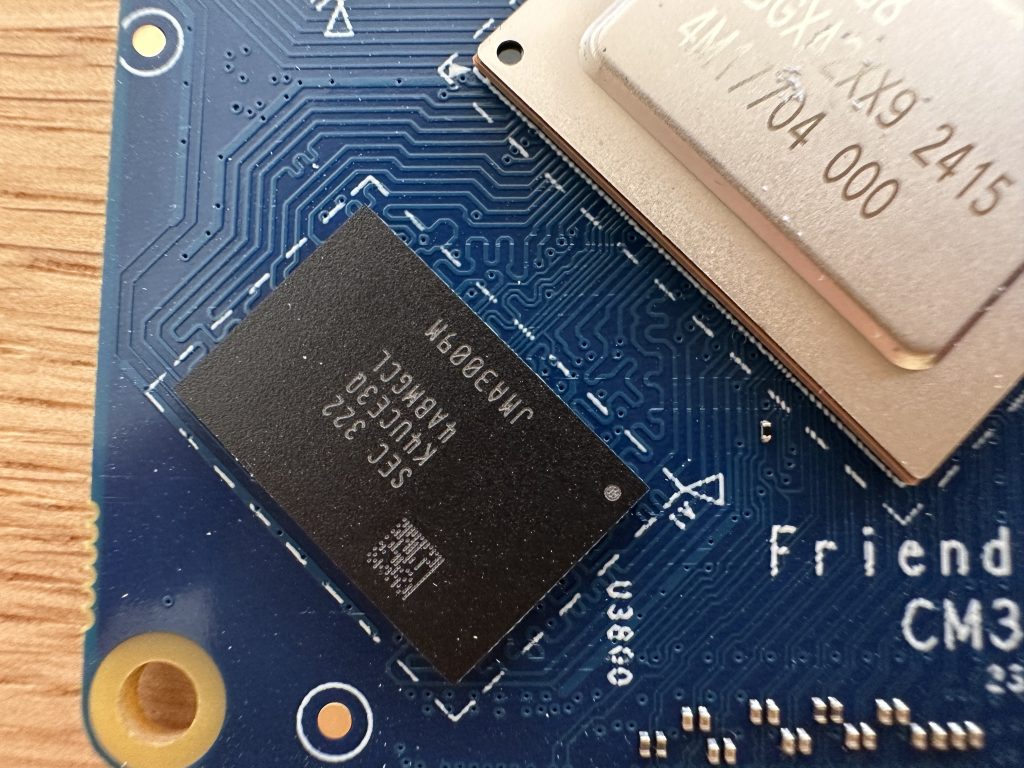

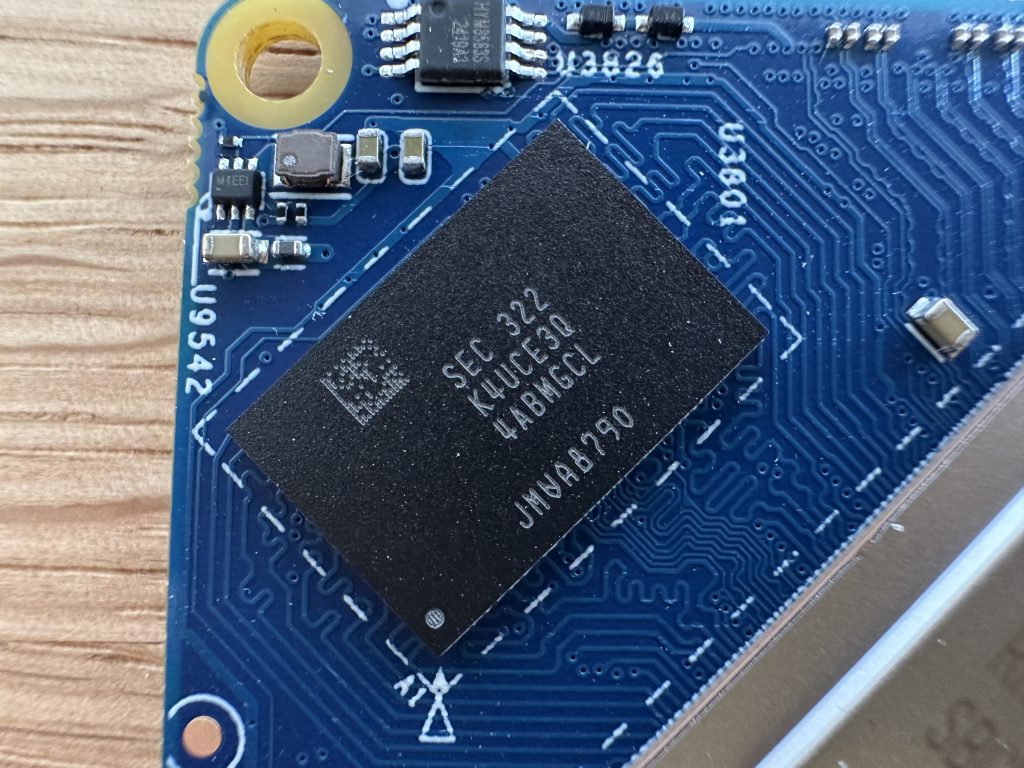

  • RAM: 64-bit 16GB LPDDR4X 2133MHz

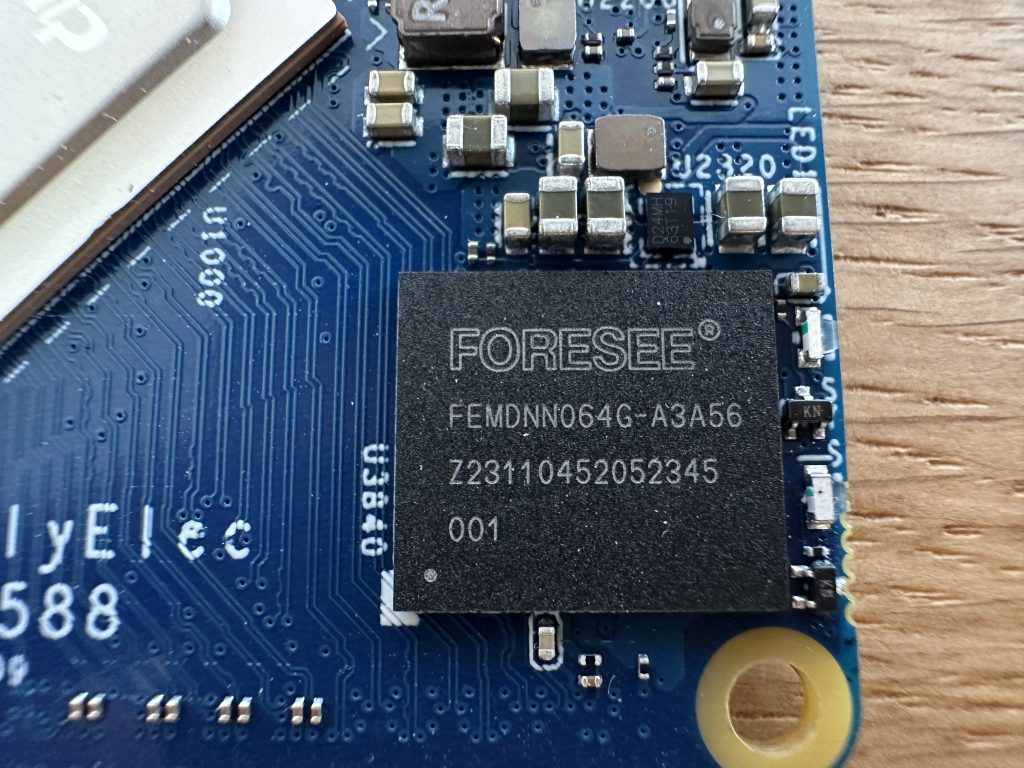

  • Storage: 64GB eMMC, at HS400 mode

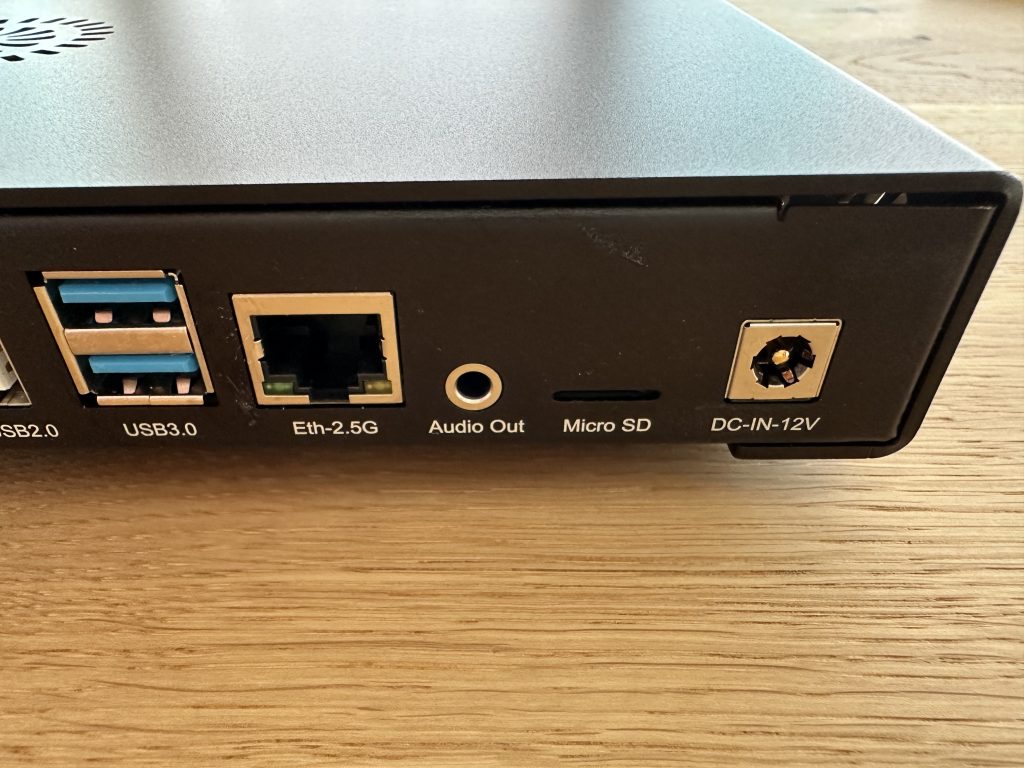

  • Network: 1 x On-board PCIe 2.5G Ethernet controller (RTL8125B)
  • The Realtek RTL8125B is a single-chip, 4-speed (2.5G/1G/100M/10M) PCIe 2.1 Ethernet controller designed for high-speed home/office networking. It supports 2.5G Lite (1G data rate), IEEE 802.3az Energy Efficient Ethernet (EEE), and features auto-negotiation with NBASE-T technology, supporting 1-Lane 2.5/5Gbps PCIe Bus.
  • Key Technical Specifications & Features:
    • Speed: Supports 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps via Auto-Negotiation.
    • Interface: PCIe 2.1, 1-Lane 2.5/5Gbps.
    • Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3bz, IEEE 802.3az (EEE).
  • Features:
    • Wake-on-LAN: Supports RealWoW! Technology.
    • Frame Support: Jumbo Frame up to 16K bytes.
    • Compatibility: Windows (7/8.1/10/11), Linux, macOS, and DOS.
    • Hardware Function: ECC and CRC.
    • Package: 48-pin QFN (Green).
  • Performance Highlights:
    • Power Efficiency: Includes power down/link down power saving.
    • Networking: Ideal for NAS, gaming, and 2.5G networking with low power consumption, roughly 3 watts under heavy load.

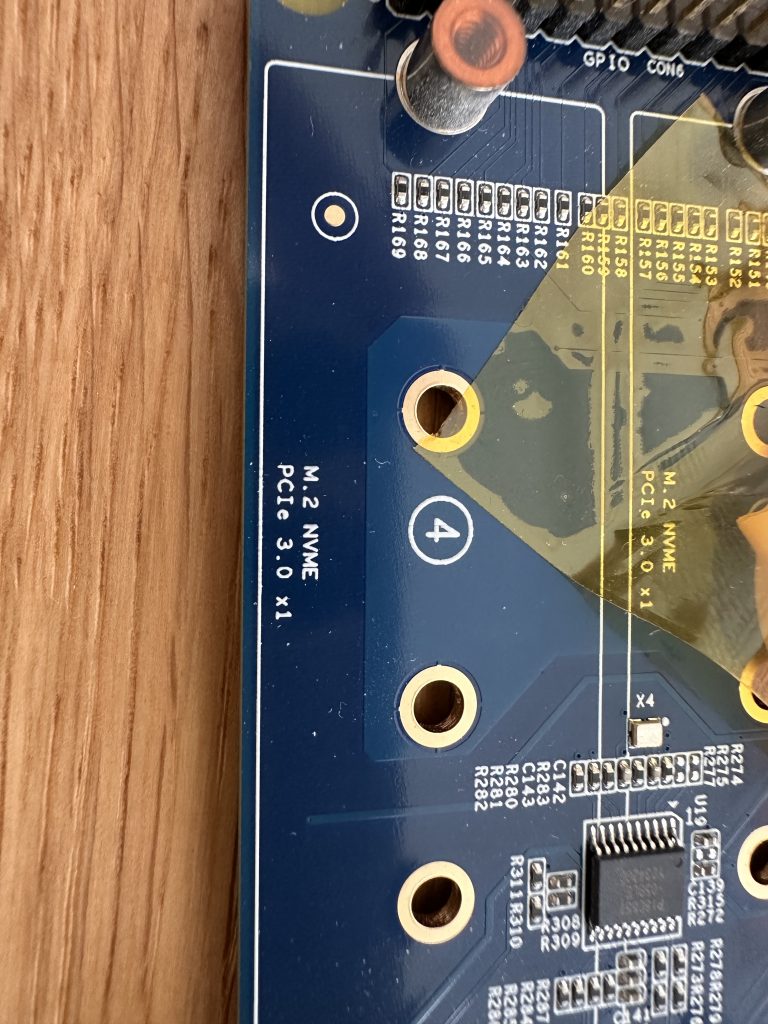

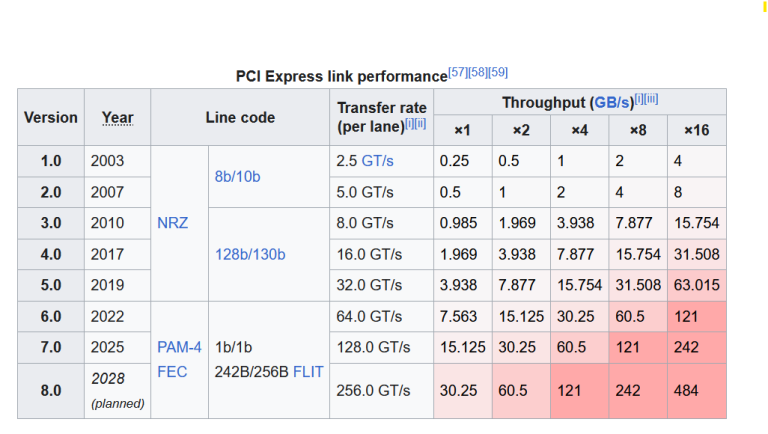

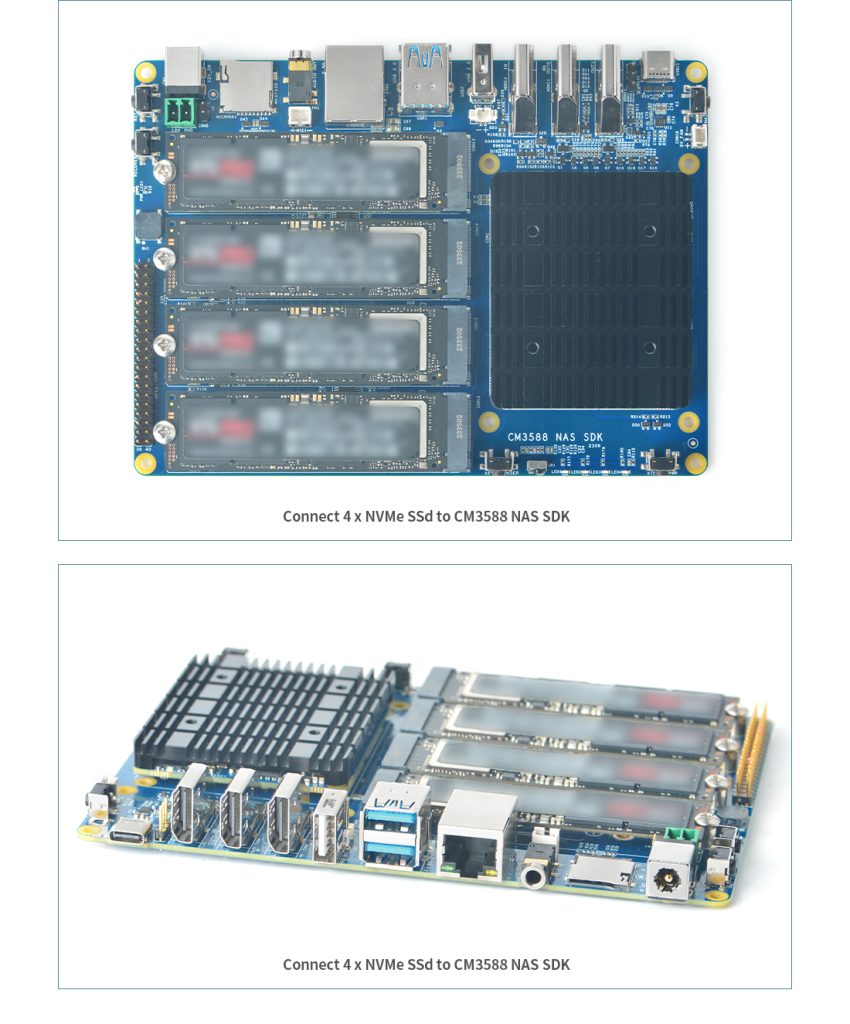

  • PCIe: 4 x PCIe 3.0 x1
    • Slot 1: Samsung SSD 970 EVO Plus 2TB | Flash: TLC | Interface: PCIe 3.0 x4 | Form Factor: M.2 2280
    • Slot 2: empty
    • Slot 3: empty
    • Slot 4: empty

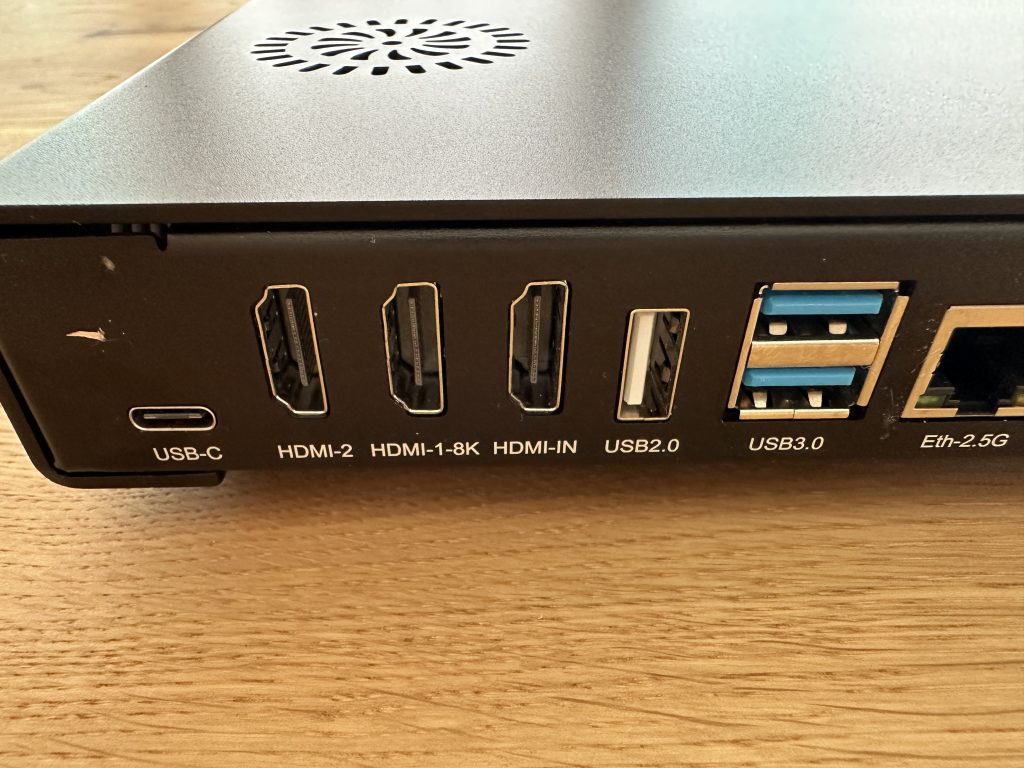

  • USB Host:
    • 2 x USB 3.1 Gen1 OTG which combo with DP display（up to 4Kp60）
    • 1 x USB 3.1 Gen1 Host
    • 2 x USB 2.0 Host
  • Debug Serial Port/UART0: Debug UART,3.3V level, 1500000bps
  • Buttons: MASK button for eMMC update, reset button, Power button, and recovery mode button
  • IR: Support 38Khz IR input
  • microSD Slot:
    • 1 x microSD interface, support up to SDR104 mode
    • SDR104 mode is a high-performance UHS-I SD card bus mode allowing data rates up to 104 MB/s (SDR = Single Data Rate)
    • Performance: Offers significantly faster read/write speeds than older standards, ideal for video editing and high-speed data processing.
    • Hardware Requirements: Requires a 1.8V regulator for voltage switching; without this, the card will revert to lower speed modes (like 3.3V High-Speed).
    • Device Examples: The Raspberry Pi 5 fully supports SDR104, while the Raspberry Pi 4 is limited to lower speeds.
    • Implementation: Linux developers typically enable this via the Device Tree by defining 1.8V capability in the SDHCI configuration.
    • Troubleshooting: If the card fails to enter SDR104 mode, check for proper 1.8V support, ensure the card is not dirty, and verify driver settings
  • Video:
  • HDMI input:
    • 1 x HDMI input, up to 4Kp60
  • HDMI output:
  • 2 x HDMI outputs which is compatible with HDM2.1, HDM2.0, and HDMl1.4 operation
    • one support displays up to 8K (7680×4320@60Hz)
    • another one support up to 4Kp60
  • Support RGB/YUV(up to 10bit) format
  • MIPI RX:
  • 2 x 4lane MP| DPHY CSl RX which support x4 mode or x2+x2 mode, compatible with MlPI V1.2
  • 2 x 4lane MIPI D/CPHY RX
  • MIPI TX:
  • 2 x 4-lane MP| D-PHY/C-PHY Combo PHY TX, compatible with MIPI DPHY 2.0 or CPHY 1.1
  • Codec:
    • On-board ALC5616 Codec (high-performance, low-power 2-channel I2S audio)
    • Audio Resolution: 24-bit resolution for both ADC and DAC.
    • Audio Performance: SNR (Signal-to-Noise Ratio) up to 92dB, DAC SNR up to 98dB.
    • Power Consumption: Ultra-low power design, consuming less than 6.5mW during typical headphone playback.
    • Playback: 2-channel DAC, stereo headphone output (cap-free), and line-out.
    • Recording: 2-channel ADC, supporting differential microphone inputs and analog line inputs.
    • Digital Interfaces: I2S/PCM interface for audio data transfer; I2C interface for register configuration.
    • Audio Enhancements: Includes a 7-band parametric equalizer (EQ) and a Dynamic Range Controller (DRC) for both playback and recording (as an Automatic Gain Controller – AGC).
    • Clock Support: Supports MCLK or PLL, with flexible sampling rates.
    • Package: 32-pin QFN (Quad Flat No-Lead), 4mm x 4mm
    • Supply Voltage: Analog/Digital: 1.1V to 1.9V.
    • Operating Temperature: -25C to 85C
    • 1 x stereo headphone output ( 20mW/CH, THD+N <= -80dB, 160hm Load )
    • 1 x single-end microphone input

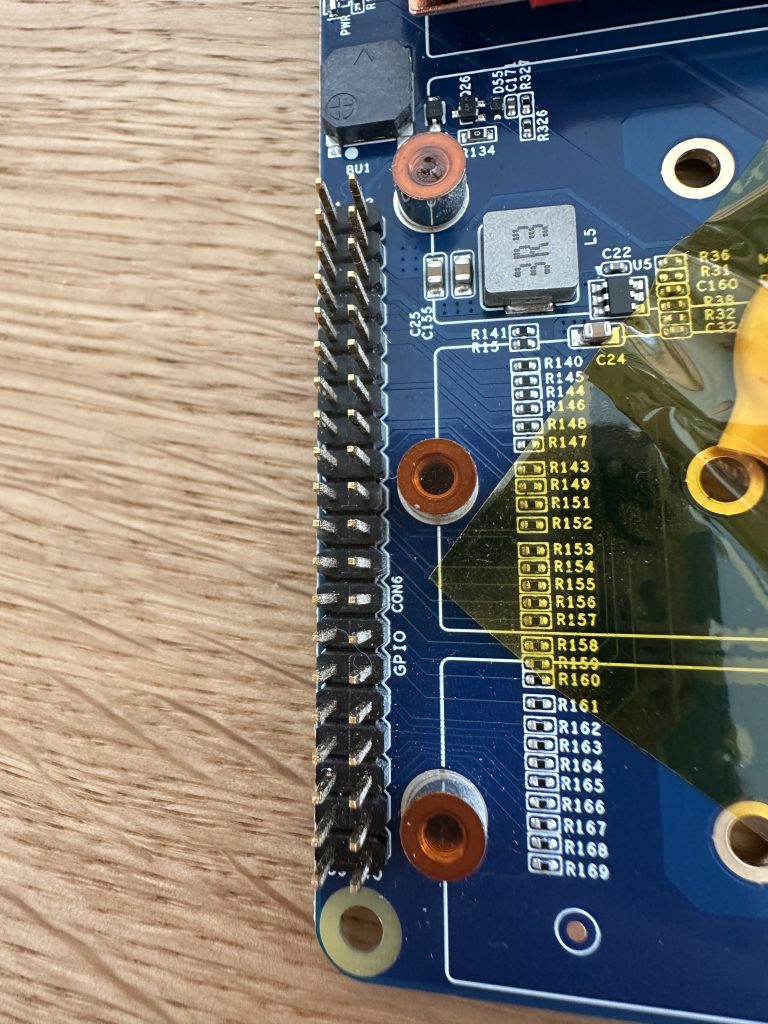

  • GPIO: up to 3 x SPIs, 7 x UARTs, 6 x I2Cs, 15 x PWMs, 3 x I2Ss, 1 x SDIO, 81 x GPIOs
  • LED: 2 x GPIO Controlled LED (SYS, LED1)
  • RTC: low power RTC (HYM8563TS) with backup battery input

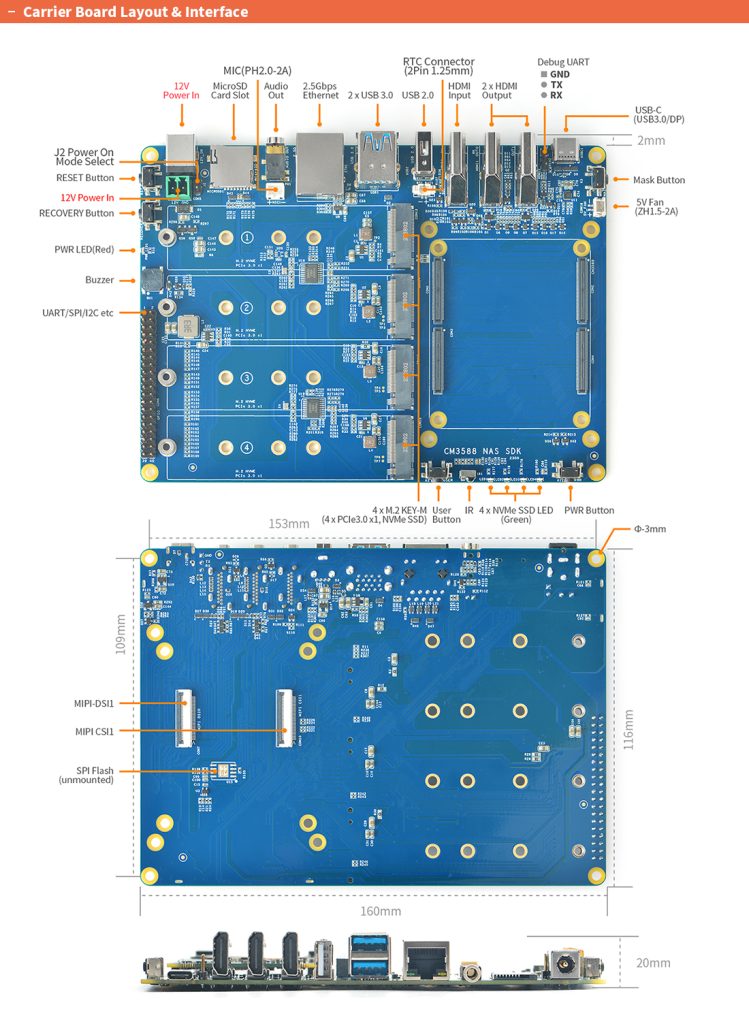

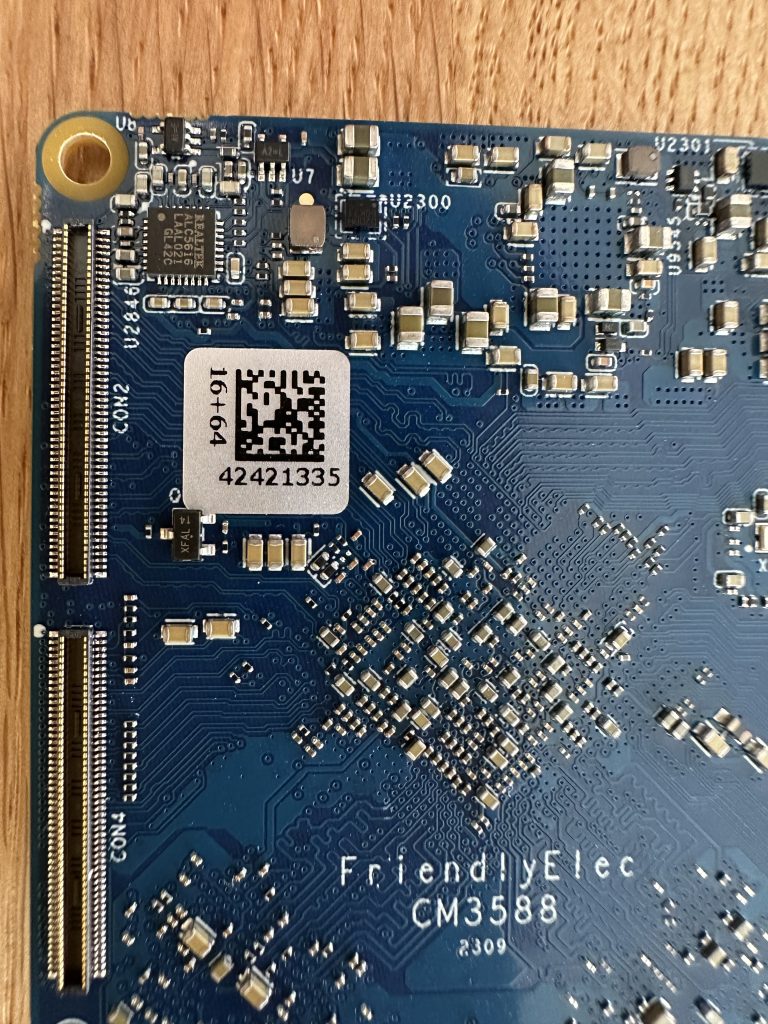

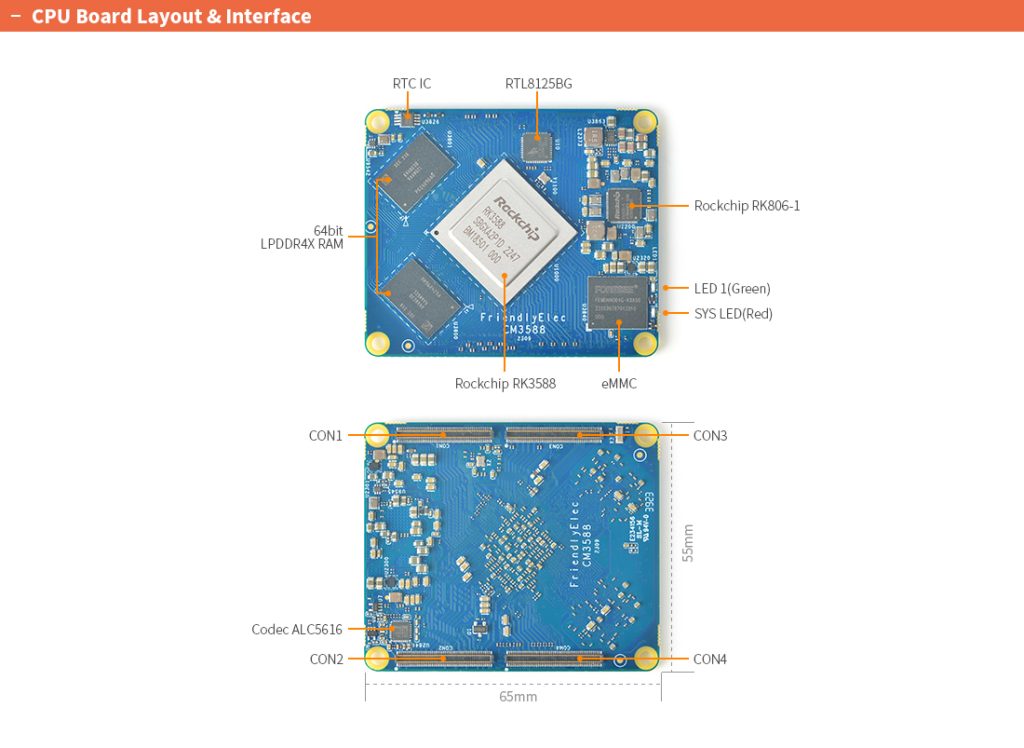

  • PCB Dimension: 8 Layers, CM3588 is 55x65x1.6mm. Stacking height: 6.6mm
  • Power: 5~20VDC input, 20W max
  • Working temperature: 0℃ to 70℃
  • OS Support:
    • FriendlyWrt 21.02
    • FriendlyWrt 24.10
    • FriendlyCore 20.04
    • OpenMediaVault 8.0.6
    • Android 14 Tablet
    • Android 14 TV
    • Debian 11 Desktop – XFCE(X11)
    • Debian 13 Trixie Core – https://www.debian.org/releases/stable/release-notes/
    • Ubuntu 20.04 Desktop – LXQT(X11)
    • Ubuntu 24.04 Desktop – GNOME(Wayland)
    • Proxmox VE
    • Alpine-Linux
    • Buildroot
  • Link: https://www.friendlyelec.com/index.php?route=product/product&product_id=294
