Ubiquiti UniFi Pro XG 8 PoE

Network

Ubiquiti UniFi Pro XG 8 PoE (USW-Pro-XG-8-PoE)

  • Dimensions: 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7″)

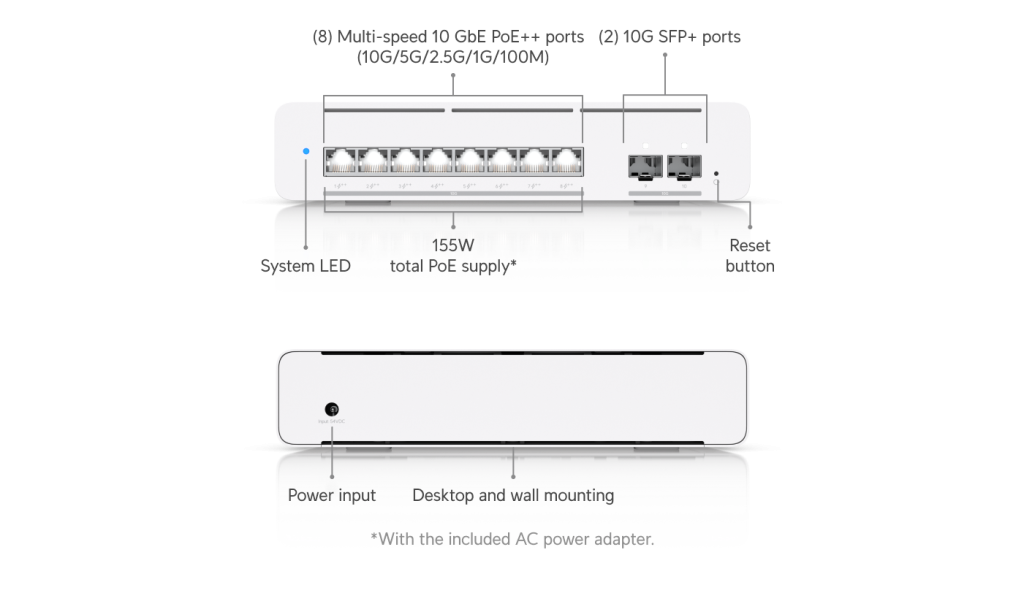

  • Port Layout
    • 10 GbE RJ45: 8 x (All PoE++) (10G/5G/2.5G/1G/100M)
    • 10G SFP+: 2 x (10G/1G)
  • Max. PoE Output: Up to PoE++
  • Total PoE Availability: 155W
  • Layer 3: Yes
  • Form Factor: Compact desktop, wall

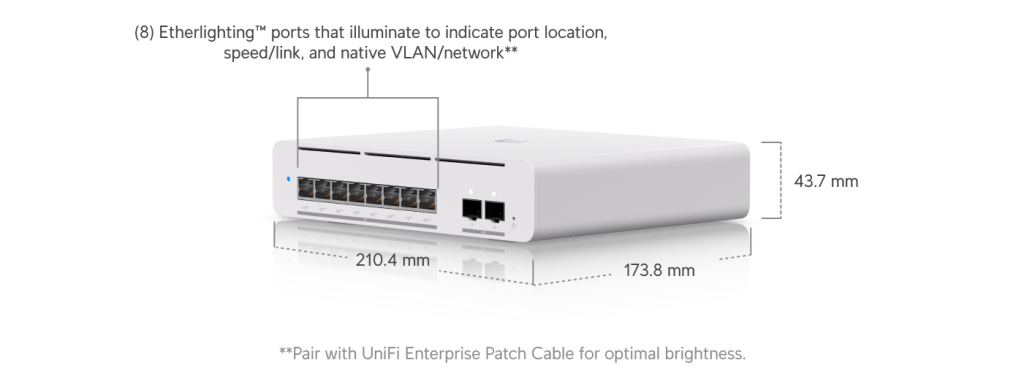

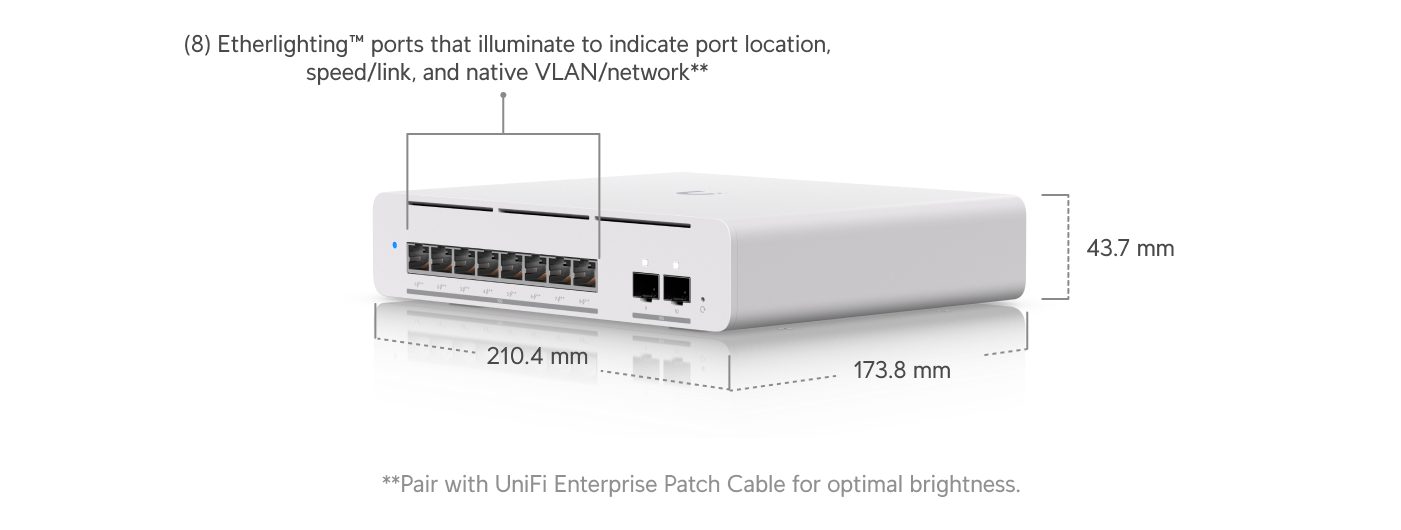

  • Etherlighting™: Yes
  • Performance
    • Switching Capacity: 200 Gbps
    • Total Non-Blocking Throughput: 100 Gbps
    • Forwarding Rate: 149 Mpps
    • Supported VLANs: 1,000
    • MAC Address Table Size: 32,000
    • IPv4 Static Routes: 256
    • Packet Buffer Size: 2 MB
    • Access Lists
      • IPv4: 128
      • MAC: 128
  • Layer 3 features:
    • DHCP Server (Local Networks): Yes
    • DHCP Relay: Yes
    • Inter-VLAN Routing (Local Networks): Yes
    • Static Routing (Local Networks): Yes
  • Layer 2 features:
    • LACP Port Aggregation: Yes
    • STP & RSTP: Yes
    • QoS (DSCP): Yes
    • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
    • Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
    • IGMP Snooping: Yes
    • 802.1X Control: Yes
    • MAC-Based ACLs & Device Isolation: Yes
    • DHCP Snooping & Guarding: Yes
    • Egress Rate Limit: Yes
    • Flow Control: Yes
    • Storm Control: Yes
    • Multicast & Broadcast Rate Limiting: Yes
    • MAC Address Blocking: Yes
    • IP-Based ACLs & Network Isolation: Yes
    • MAC-Based Port Restriction: Yes
    • Port Isolation: Yes
    • Port Mirroring: Yes
    • Jumbo Frames: Yes
    • LLDP-MED: Yes
    • Voice VLAN: Yes
    • Loop Protection: Yes
    • Virtual Network Override: Yes
  • Hardware
  • PoE Ports: PoE++: 8
  • Max. PoE Wattage per Port by PSE
    • PoE: 15.4W
    • PoE+: 30W
    • PoE++: 60W
  • Max. Power Consumption
  • 61W (Excluding PoE output)
  • 210W (Including PoE output)
  • Power Method: AC/DC Adapter (included)
  • Power Input Method: DC input
  • Power Supply: AC/DC, external, 210W
  • Supported Voltage Range: 50–57V DC
  • Management
  • Ethernet
  • Weight: 1.6 kg (3.5 lb)
  • Enclosure Material: SGCC steel
  • Mount Material: Polycarbonate
  • ESD Protection: Air: ± 30kV, contact: ± 30kV
  • Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • Etherlighting™
    • Ethernet: Yes
    • SFP+: Yes
  • LEDs
    • System: Yes
  • NDAA Compliant: Yes
  • Certifications: CE, FCC, IC, Anatel: 04322-25-08356
  • Application Requirements
    • UniFi Network: Version 9.0.114 and later
  • Link: https://techspecs.ui.com/unifi/switching/usw-pro-xg-8-poe
