HP ProDesk 4 Mini G1i AI Black

HP ProDesk 4 Mini G1i AI Black

• Operating system: Windows 11 Pro – Proxmox 9.2.4
• Processor: Intel® Core™ Ultra 5 225T (up to 4.9 GHz with Intel® Turbo Boost Technology, 20 MB L2 Cache, 10 cores, 10 threads)
• CPU Type: 6C+4c Intel Core Ultra 5 225T, 4400 MHz (44 x 100)
• Motherboard Name: HP ProDesk 4 Mini G1i Desktop AI PC
• Model: HP ProDesk 4 Mini G1i U5225T16GB/512GBPC (BY6X9ET)
• Motherboard Chipset: Intel® Arrow Point Q870, Intel Arrow Lake-S (vPro®)
• Graphics: Integrated, Intel® Graphics
• Original Memory: 16 GB DDR5-5600 MT/s (1 x 16 GB)
• Memory Slots: 2 DIMM
• Upgraded System Memory: 32188 MB (DDR5 SDRAM)
• DIMM1: Nanya NT16GF64F88AX3S-Q5: 16 GB DDR5-5600 DDR5 SDRAM (CL 46-45-45-90 @ 2800 MHz)
• DIMM5: Micron CT16G56C46S5.C8H: 16 GB DDR5-5600 DDR5 SDRAM (CL 46-45-45-90 @ 2800 MHz)
• Original Internal Storage: 512 GB PCIe® Gen4 x4 NVMe™ M.2 SSD 2280
• Disk Drive: KINGSTON OM8PJP4512K3-AH0 (476 GB)
• Upgraded Internal Storage: 2 TB PCIe® Gen4 x4 NVMe™ M.2 SSD 2280
• Dimensions (W x D x H): 17.7 x 18.1 x 3.42 cm
• Weight: 1.2 kg
• Wireless: Intel® Wi-Fi 6E AX211 (2×2) and Bluetooth® 5.3 wireless card
• Network interface: Intel® I219LM GbE
• Network Adapter: Intel(R) Ethernet Connection (19) I219-LM
• Audio: Realtek ALC3252 codec, universal audio jack with CTIA and OMTP headset support
• Audio Adapter: Realtek ALC256 @ Intel Arrow Point PCH – Audio Context Engine
• USB3 Controller: Intel Arrow Point PCH – USB 3.2 Gen 2×2 (20 Gb/s) xHCI Host Controller
• USB3 Controller: Intel Meteor Lake-H/U / Arrow Lake – USB xHCI Host Controller
• BIOS Version: X23 Ver. 02.04.10 – upgraded to: Jun 1, 2026 – version: 02.05.02 Rev.A
• Serial Number: 1HF6181F4F
• Expansion slots
  • 1 x M.2 2230 (1 x M.2 slot for WLAN)
  • 2 x M.2 2280 (2 x M.2 2280 slots for storage)
• Ports

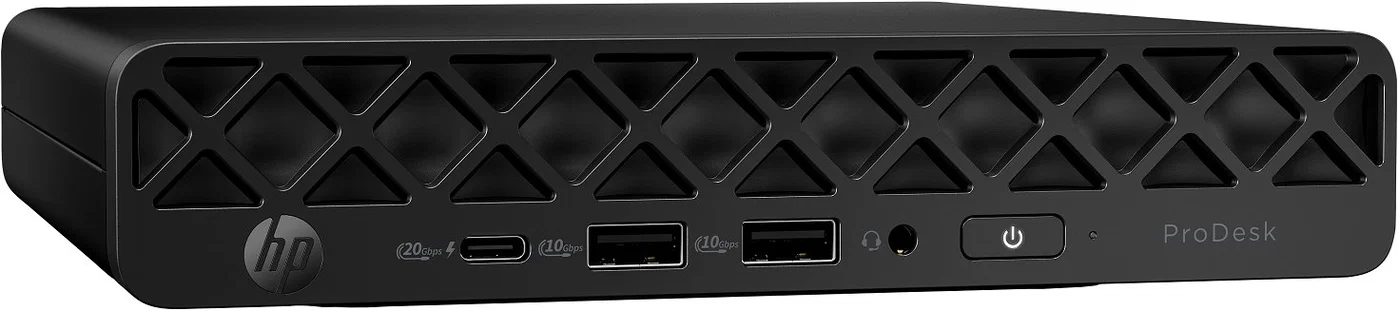

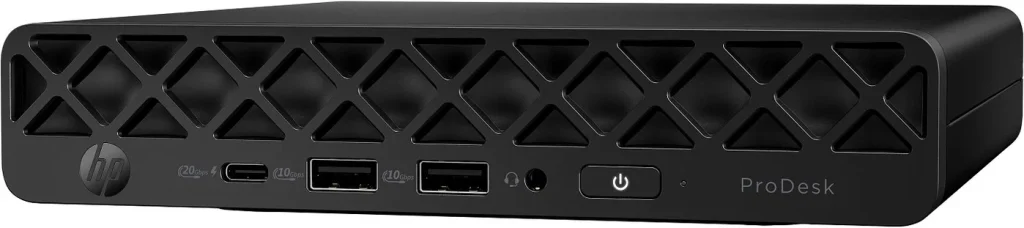

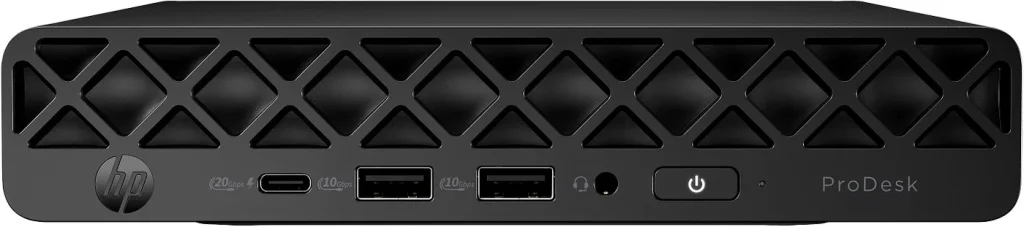

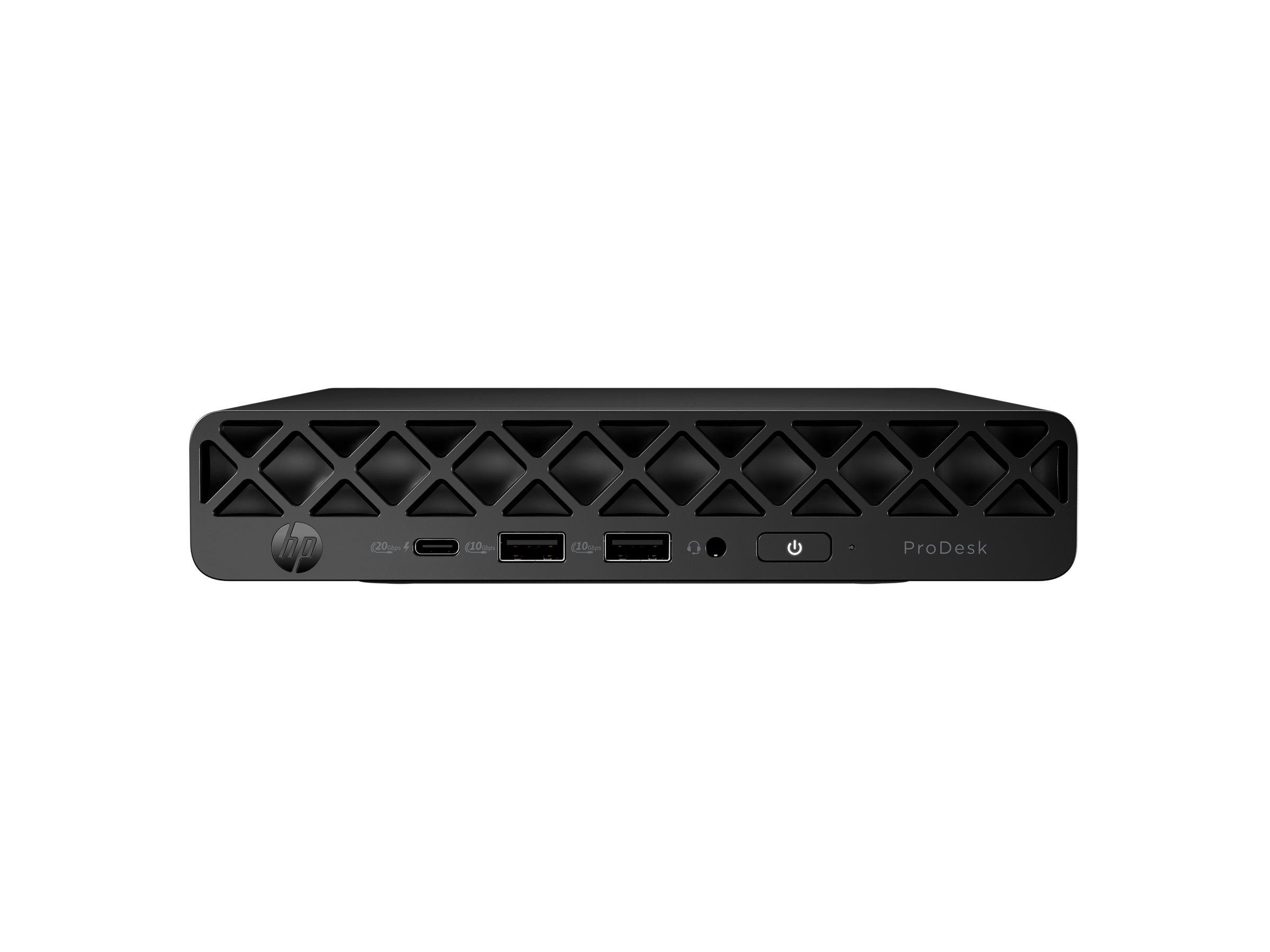

  • Front
    • 1 x USB Type-C® 20Gbps signaling rate
    • 2 x USB Type-A 10Gbps signaling rate
    • 1 x headphone/microphone combo

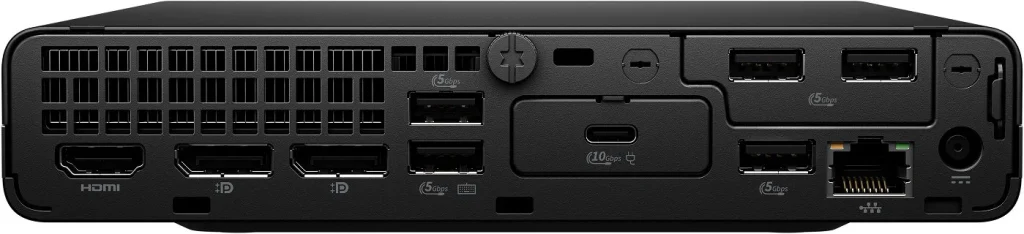

  • Rear
    • 3 x USB Type-A 5Gbps signaling rate
    • 1 x HDMI 2.1
    • 1 x RJ-45
    • 1 x power connector
    • 2 x DisplayPort™ 2.1
    • 2 x external antenna connector
• Power: 90 W external power adapter, up to 89% efficiency
• Ecolabels: EPEAT® registered
• Link: https://www.hp.com/ie-en/products/desktops/product-details/product-specifications/2103353663
• Future 2.5 Gbe card: https://www.hpmarket.cz/productOpt.asp?konfId=169K0AA
• Future 10 Gbe card: https://www.hpmarket.cz/productOpt.asp?konfId=56Q71AA
• Benchmarks:
• Passmark Rating: 3,674 – https://www.passmark.com/baselines/V11/display.php?id=358317521246
  • CPU Mark CPU Test Info: 25,911
  • 2D Graphics Mark: 699
  • 3D Graphics Mark 3D Graphics Test Info: 1,995
  • Memory Mark Memory Test Info: 3,325
  • Disk Mark Disk Test Info: 48,307
• AIDA
  • hp_original
  • hp_v2_home_clean
