HP ProDesk 400 G5 Desktop Mini – Hardware Telemetry & Diagnostic Report

Report Type: Comprehensive System Diagnostic & Hardware Inventory (AIDA64 Style)
•
Target Host: i3 (HP ProDesk 400 G5 Desktop Mini)
•
Site: CZ-BRN-NEU (Brno Lab)
•
Verification Date: August 22, 2026 / September 20, 2026

1. System Summary & Computer Overview

Category Property Value
Computer Computer Type ACPI x64-based Ultra-Compact Form Factor (UCFF) Desktop Mini PC
Hostname / Role i3 (Standalone Proxmox VE Virtualization Node & Immich VM 102 Host)
System Vendor & Model HP Inc. • HP ProDesk 400 G5 Desktop Mini (Family: 103C_53307F HP ProDesk)
Product SKU & Serial Product ID: 8VR69ES#BCM (DMI: SBKPFV3) • Serial: 8CC0270RP8
System UUID a5d665b5-0be4-0303-77ef-fab9d5fd9981
Motherboard HP 859C (Mandolin-R • KBC 08.09.22 • Serial: PHVVA0A8JDUDXN)
Chassis Dimensions & Weight 1-Liter Ultra-Slim Mini (17.7 × 17.5 × 3.4 cm • 1.25 kg net weight)
Operating System Primary Hypervisor Proxmox VE 9.2.11 (pve-manager 9.2.11/f6997e698c7933ea)
Base OS & Kernel Debian GNU/Linux 13 (trixie, x86_64) • Linux Kernel 7.0.14-12-pve
Dual-Boot Secondary OS Windows 10 Pro 64-bit (contained on secondary protected SATA SSD)
Boot Mode & Firmware Native UEFI Mode with Secure Boot support
Cluster Network Endpoints LAN: 192.168.111.101/24 on vmbr0 • Tailscale: 100.83.60.31 (cz-brn-neu-proxmox-i3)
Processors CPU Sockets 1 × Socket LGA 1151 (LGA 1151v2)
Processor Model Intel(R) Core(TM) i3-9100T CPU @ 3.10GHz (• Exhibit #2877)
Core / Thread Count 4 Physical Cores / 4 Threads (1 thread per core, non-SMT)
Microarchitecture Coffee Lake Refresh (14 nm++, Stepping B0, S-Spec SRCZX, 35W TDP)
PassMark Benchmark 5,632 Multi-Thread Mark (Local System Run: 6,109 • Single-Thread: 2,116 MOps/Sec)
Memory Physical Installed RAM 64.0 GB (2 × 32 GB Corsair Vengeance DDR4-3200 SODIMMs)
Module Specification Corsair CMSX64GX4M2A3200C22 (Dual-Rank 2Rx8, non-ECC unbuffered, 1.2V)
Configured Operating Speed 2400 MT/s (38.4 GB/s dual-channel bandwidth • B360 chipset limit)
Runtime Usable Memory 62.5 GiB binary (~67.0 GB decimal) Linux visible RAM + 8.0 GiB Swap
Graphics Integrated Graphics Processor Intel® UHD Graphics 630 (Gen9.5 GT2, 24 EUs @ up to 1,100 MHz boost • i915)
Hardware Acceleration Intel Quick Sync Video (Hardware HEVC 10-bit / VP9 encode & decode for Immich VM 102)
Physical Display Connectors 2 × DisplayPort 1.2 (4096 × 2304 @ 60Hz) + 1 × VGA port (2048 × 1536 @ 60Hz)
Storage Primary OS & VM Storage Kingston OM8PJP4512K3-AH0 512 GB M.2 2280 NVMe 2.0 SSD (PCIe 3.0 x4)
Secondary Protected Disk Verbatim Vi560 S3 SSD 512 GB 2.5″ SATA 3.0 SSD (Firmware: HP3418C5)
Storage Subsystem Health SMART Passed on both drives • 0 media errors • 100% available NVMe spare
Networking Primary Wired Ethernet Realtek RTL8111HSH Gigabit Network Connection (PCI 10ec:8168 rev 15 • 1 Gb/s Full-Duplex)
Wireless Interface Intel Wireless-AC 9560 160MHz (802.11ac + Bluetooth 5.0, MAC: f8:ac:65:79:f5:18 • Standby)

2. Motherboard & Chipset Architecture

Motherboard Properties

  • Manufacturer: HP Inc.
  • System Board Model: HP 859C (Mandolin-R Architecture)
  • Board Serial: PHVVA0A8JDUDXN (KBC Firmware 08.09.22)
  • Form Factor: Proprietary HP Ultra-Slim Desktop Mini (1-Liter UCFF)
  • Chassis Engineering: Heavy-gauge galvanized steel frame with tool-free thumbscrew quick-release top cover and integrated cooling shroud.

BIOS & Firmware

  • Vendor & Version: HP R23 Ver. 02.26.00
  • Release Date: May 5, 2026 (Modern Production Maintenance Release)
  • Firmware Standards: UEFI 2.6, SMBIOS 3.2, ACPI 6.2, PXE 2.1 Boot
  • Microcode Status: Intel Microcode Revision 3.20251111.1~deb13u1
  • Hardware Features: HP Sure Start Gen5 BIOS protection, TPM 2.0 security chip, Intel VT-x and VT-d directed I/O virtualization.

Chipset & Bus Architecture

  • Platform Controller Hub: Intel® B360 Express Chipset (Cannon Lake PCH, 22 nm, 6W TDP)
  • Interconnect Fabric: Direct Media Interface (DMI 3.0) running 4 lanes at 8.00 GT/s (approx. 3.93 GB/s per direction) to CPU.
  • Peripheral Connectivity: 4 × USB 3.1 Gen 1, 2 × USB 2.0, dual M.2 slots (1 × M.2 2280 PCIe NVMe + 1 × M.2 2230 Wi-Fi).
  • Storage Interface: Intel Cannon Lake PCH AHCI controller operating internal 6 Gbps SATA 3.0 channel.

Power Delivery & Energy Efficiency

  • Power Supply Unit: External HP 65W Smart AC Adapter (19.5V DC output, 3.33A)
  • Efficiency Rating: Up to 89% energy efficiency at typical operational loads.
  • Idle Power Consumption: Consumes approximately 8W – 11W in low-power idle hypervisor state.
  • Acoustic Footprint: Whisper-quiet radial blower fan with closed-loop PID thermals operating below 22 dBA at baseline.

3. Processor Architecture (Intel Core i3-9100T)

CPU Specification Processor Socket #0 (Installed CPU)
Model Name Intel(R) Core(TM) i3-9100T CPU @ 3.10GHz (• Exhibit #2877)
Architecture & Lithography Coffee Lake Refresh (14 nm++ 3D Tri-Gate FinFET)
Socket & Stepping Socket LGA 1151 (LGA 1151v2) / Stepping B0 (Family 6, Model 158, Stepping 11)
Production S-Spec Code SRCZX (Verified Museum Physical Inventory • OEM Part: CM8068403377713)
Physical Cores / Threads 4 Cores / 4 Threads (1 thread per core, non-SMT design)
Base & Turbo Frequencies 3.10 GHz Base / 3.70 GHz Max Turbo (Intel Turbo Boost Technology 2.0)
BCLK Multiplier & Voltage 100 MHz Base Clock × 31.0 (Locked Multiplier) • Dynamic VID 0.65V – 1.20V
Thermal Design Power (TDP) 35 W (T-Series Ultra-Low Power Profile • 25W cTDP-down @ 2.40 GHz)
Hypervisor Virtualization Intel VT-x with Extended Page Tables (EPT) • Intel VT-d (IOMMU translated mode with interrupt remapping)

Cache Hierarchy

Cache Level Type Per-Core Capacity Total Aggregate Associativity & Line Size
L1 Data Data (L1d) 32 KiB per core 128 KiB (4 instances across 4 cores) 8-way set associative, 64-byte line size
L1 Instruction Instruction (L1i) 32 KiB per core 128 KiB (4 instances across 4 cores) 8-way set associative, 64-byte line size
L2 Unified Dedicated (L2) 256 KiB per core 1,024 KiB (1 MiB) 4-way set associative, 64-byte line size
L3 Shared Intel Smart Cache (L3) Shared pool across 4 cores 6,144 KiB (6 MiB) 12-way set associative, non-inclusive ring cache

Hardware Vulnerability & Mitigation Status

Vulnerability Kernel Status Mitigation Details
Meltdown (CVE-2017-5754) Mitigated Kernel Page Table Isolation (KPTI) fully active in Linux 7.0.14-12-pve
Spectre v1 (CVE-2017-5753) Mitigated usercopy/swapgs barriers and __user pointer sanitization
Spectre v2 (CVE-2017-5715) Mitigated Retpolines, conditional Indirect Branch Prediction Barrier (IBPB), IBRS_FW, RSB filling
Speculative Store Bypass (v4) Mitigated Speculative Store Bypass Disable (SSBD) enforced via prctl
L1TF Foreshadow (CVE-2018-3615) Mitigated PTE Inversion, VMX L1D cache flushing on hypervisor entry
MDS (CVE-2019-11091) Mitigated Microcode buffer clearing (MD_CLEAR) active; SMT disabled (non-SMT CPU)
Gather Data Sampling (GDS) Vulnerable Published GDS vulnerability reported by kernel; monitored under ongoing patch review
Retbleed / SRBDS Mitigated Mitigated via microcode update 3.20251111.1~deb13u1 and kernel return thunks

4. Memory (RAM) & Channel Subsystem

Total Physical Memory

64.0 GB

2 × 32 GB Corsair Vengeance DDR4 SODIMMs

Operating Speed & Mode

DDR4-2400

Dual-Channel Interleaved • 38.4 GB/s peak bandwidth

Slot Utilization

2 / 2 Filled

Fully populated dual SODIMM architecture (100% capacity)

Physical Channel Layout Map

+-----------------------------------------------------------------------------------------------+
|                         HP 859C SYSTEM BOARD (MANDOLIN-R) MEMORY TOPOLOGY                     |
|                                                                                               |
|  [ INTEL CORE i3-9100T INTEGRATED DUAL-CHANNEL DDR4 CONTROLLER ]                             |
|                                                                                               |
|   - Channel A:                                                                                |
|     * Slot DIMM 3 (Internal Lower Slot): [ 32 GB Corsair CMSX64GX4M2A3200C22 DDR4-2400 ]      |
|                                                                                               |
|   - Channel B:                                                                                |
|     * Slot DIMM 1 (Internal Upper Slot): [ 32 GB Corsair CMSX64GX4M2A3200C22 DDR4-2400 ]      |
|                                                                                               |
|   Total Usable System Physical Memory: 64.0 GB (62.5 GiB binary Linux Visible + 8.0 GiB Swap)  |
+-----------------------------------------------------------------------------------------------+

Physical DIMM Slot Inventory

Slot Label Channel Installed Module Part Capacity Type & Rank Rated / Configured Speed Status
DIMM 1 Channel B Corsair CMSX64GX4M2A3200C22 32 GB DDR4 SODIMM, Dual-Rank 2Rx8 3200 MT/s rated • 2400 MT/s active Active / OK
DIMM 3 Channel A Corsair CMSX64GX4M2A3200C22 32 GB DDR4 SODIMM, Dual-Rank 2Rx8 3200 MT/s rated • 2400 MT/s active Active / OK

5. Graphics & Display Adapters

Primary Accelerator: Intel® UHD Graphics 630

GPU Architecture Gen9.5 GT2 (14 nm++ monolithic integration)
Execution Units (EUs) 24 Execution Units (192 Shading Units • 350 MHz base / 1,100 MHz dynamic max)
Video Memory (VRAM) Shared System Memory (Dynamic Video Memory up to 64 GB allocated from system RAM)
Media Engines & Transcoding Intel Quick Sync Video • Hardware decode/encode for H.264, H.265/HEVC (10-bit), VP9
Driver Interface i915 Direct Rendering Manager (DRM) kernel module with hardware acceleration enabled
Physical Display Outputs 2 × DisplayPort 1.2 ports + 1 × VGA port (supports up to 3 independent displays)
Maximum Resolution 4096 × 2304 @ 60Hz (DisplayPort) • 2048 × 1536 @ 60Hz (VGA)

6. Storage Subsystem & Drive Inventory

+-------------------------------------------------------------------------------------------------------+
|                                    PHYSICAL DISK & STORAGE TOPOLOGY                                   |
|                                                                                                       |
|  [ M.2 2280 PCIe NVMe 2.0 BUS ]                                                                       |
|   +-- Device: /dev/nvme0n1 (Kingston OM8PJP4512K3-AH0, 512 GB)                                        |
|       |-- Partition 1 (nvme0n1p1): 1.0 GiB FAT32 -> /boot/efi (UEFI Boot Partition)                   |
|       `-- Partition 2 (nvme0n1p2): 475.9 GiB LVM2 Physical Volume (pve Volume Group)                   |
|           |-- pve/root: 96.0 GiB ext4 -> / (Proxmox VE Root Filesystem)                                |
|           |-- pve/swap: 8.0 GiB -> [SWAP] (Host Paging Space)                                         |
|           |-- pve/data: 348.8 GiB LVM-Thin Guest Volume Pool (Authoritative store for Immich VM 102)   |
|           `-- [VG Reserve]: 16.0 GiB Unallocated Dynamic Headroom                                     |
|                                                                                                       |
|  [ 2.5" SATA 3.0 6Gb/s AHCI BUS ]                                                                     |
|   `-- Device: /dev/sda (Verbatim Vi560 S3 SSD, 512 GB)                                                |
|       `-- Partitions: 100M FAT, 16M MSR, 476.3G NTFS, 522M Recovery (Protected Windows Installation)   |
+-------------------------------------------------------------------------------------------------------+
Device Model & Firmware Serial Number Bus Attachment Raw Capacity SMART Health & Role
/dev/nvme0n1 Kingston OM8PJP4512K3-AH0 (FW: HPS0) 0026B73848BD3330 M.2 2280 PCIe 3.0 x4 / NVMe 2.0 512,110,190,592 bytes (512 GB) Passed (0 errors • 35°C) • Proxmox Root & LVM-Thin
/dev/sda Verbatim Vi560 S3 SSD (FW: HP3418C5) 493635268372549 Internal 2.5″ SATA 3.0 6Gb/s 512,110,190,592 bytes (512 GB) Passed (0 errors • 39°C) • Protected Windows 10 Disk

7. Network Adapters & Connectivity

Interface Hardware Controller MAC Address Link Speed & Driver Network Configuration Status
nic0 / vmbr0 Realtek RTL8111HSH Gigabit Ethernet (PCI 10ec:8168 rev 15) bc:e9:2f:84:95:54 1000 Mb/s Full-Duplex • r8169 192.168.111.101/24 (MTU 1500, IOMMU Group 11) UP (Active)
tailscale0 Tailscale Mesh Virtual Adapter Virtual Interface Tunnel / WireGuard (Line-rate) 100.83.60.31 (Hostname: cz-brn-neu-proxmox-i3) UP (Connected)
wlp0s20f3 Intel Wireless-AC 9560 160MHz f8:ac:65:79:f5:18 802.11ac / iwlwifi Unassigned / Down (Dedicated server policy) Standby

8. Thermal Telemetry, Sensors & Acoustic Profile

CPU Heatsink

Radial Blower

Copper core heatpipe module

NVMe Temperature

35°C

Kingston OM8PJP4512K3 active inspection

SATA Temperature

39°C

Verbatim Vi560 active inspection

Acoustic Level

< 22 dBA

Near-silent continuous operation

Acoustic & Thermal Ducting Engineering

The HP ProDesk 400 G5 Desktop Mini employs a customized low-profile centrifugal blower fan assembly paired with a copper heatpipe radiator. Ambient intake air is pulled through the front perforated bezel, passes directly across the dual DDR4 SODIMM banks and M.2 NVMe SSD, and exhausts horizontally through the rear cooling fins. The 35W low-power profile of the Core i3-9100T keeps fan speeds at minimum RPM under sustained hypervisor workloads.

9. Operating System & Virtualization Roles

Virtualization & Workload Roles

  • Authoritative Immich Host: Hosts production Immich VM 102 with dedicated containerized AI photo indexing, embedding, and facial recognition pipelines.
  • Standalone Hypervisor: Proxmox VE 9.2.11 cluster node with independent storage thin pool (pve/data approx. 348.8 GiB).
  • Mesh Transport: Pinpoint Tailscale endpoint (100.83.60.31) providing encrypted inter-site management and zero-trust administrative access.

Rollback Evidence & Integrity

  • Protected SATA SSD: Verbatim Vi560 S3 SSD preserves an unmounted, intact Windows 10 Pro environment for instant hardware diagnostics and firmware provisioning.
  • Local Host Rollback: Pre-change configuration manifest verified at /root/cz-brn-neu-onboarding-rollback-20260822T193922+0200/ (12/12 verified files).
  • SMART & Telemetry Health: Zero pending sectors, zero UDMA CRC errors, and 100% spare reserve across all solid-state media.

10. Diagnostic Health & Operational Assessment

  1. Processor & Hypervisor Efficiency: The installed Intel Core i3-9100T (S-Spec SRCZX, B0 stepping • Exhibit #2877) delivers dependable quad-core compute within a low 35W thermal envelope, providing an ideal, whisper-quiet platform for the standalone Proxmox node i3.
  2. High-Density 64 GB Memory Infrastructure: Configured with 64.0 GB of Corsair Vengeance DDR4 memory across dual SODIMM slots running at 2400 MT/s, providing substantial headroom for Linux ZFS caching and dense VM memory allocations.
  3. Storage Subsystem Integrity: Primary Kingston 512 GB NVMe SSD operates at 35°C with 0 media errors and 100% available spare, hosting the 348.8 GiB LVM-thin guest store. The secondary Verbatim Vi560 SSD safely preserves the offline Windows installation without Proxmox interference.
  4. Network & Edge Reliability: Gigabit Realtek LAN functions at 1000 Mb/s full-duplex with active IOMMU group 11 isolation, while encrypted Tailscale mesh connectivity provides seamless administrative reachability across the CZ-BRN-NEU homelab topology.

11. Authentic Museum Photography & PassMark Performance Baselines

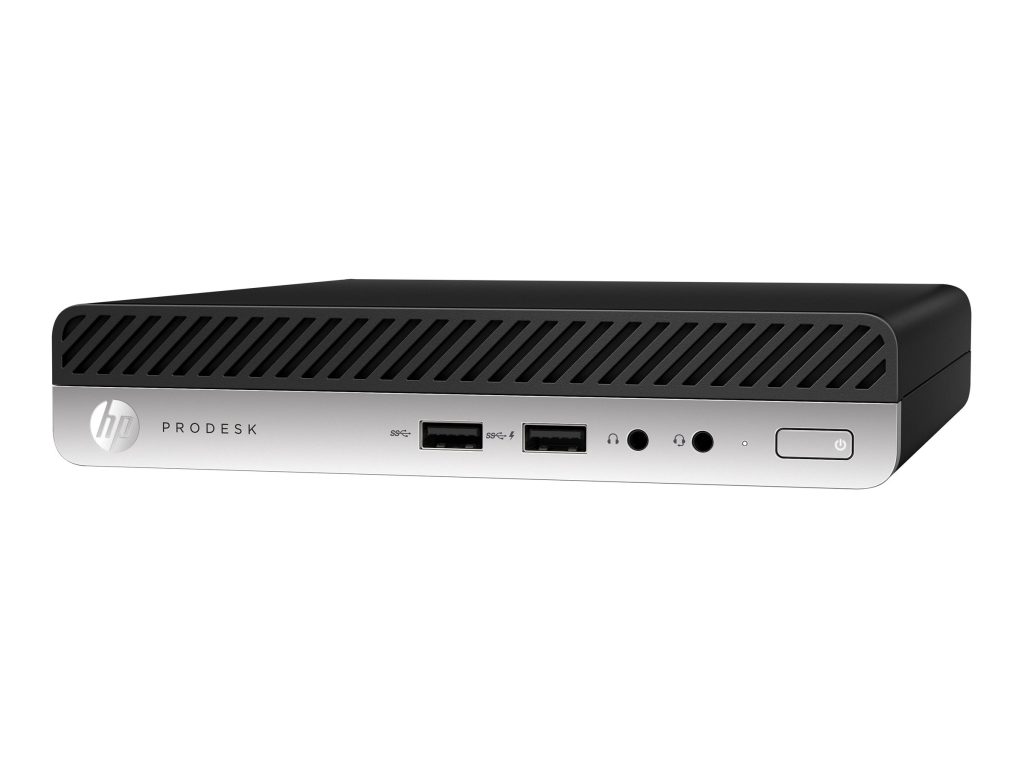

HP ProDesk 400 G5 Front and Rear Chassis View

HP ProDesk 400 G5 Desktop Mini • Front I/O & Dual DisplayPort Rear Connectivity

HP ProDesk 400 G5 Internal Hardware Layout

Internal 1-Liter Chassis Architecture • 2.5″ SSD Caddy & Centrifugal Blower Assembly

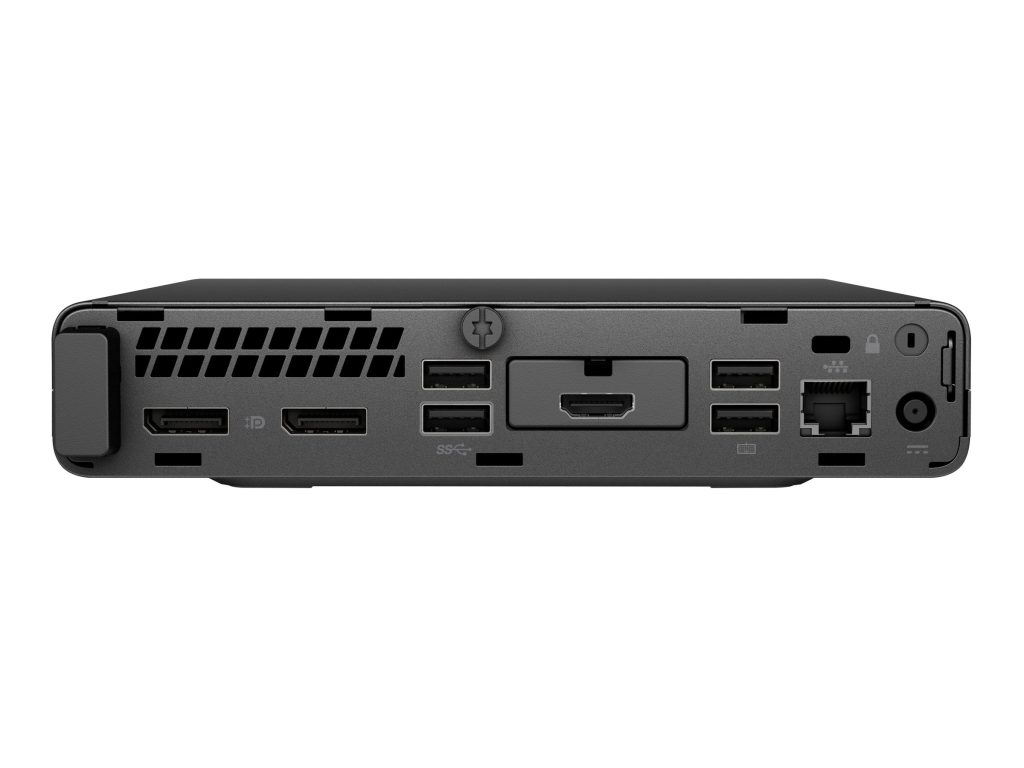

HP ProDesk 400 G5 System Board Detail

HP 859C Mandolin-R Motherboard • Dual DDR4 SODIMM Slots & M.2 2280 NVMe Interface

PassMark PerformanceTest V11 Baseline Verification

Benchmark Baseline Overall PassMark Rating CPU Mark 2D Graphics 3D Graphics Memory Mark Disk Mark
Baseline #366686410746 (Optimized) 1,516 6,109 345 1,174 2,730 3,175 (Vi560 SSD)
Baseline #366675306005 (Initial) 1,173 4,106 312 861 2,318 2,963
Report compiled from live system telemetry on August 22, 2026 and September 20, 2026. CZ-BRN-NEU Infrastructure Operations.
