1. Technical Overview & Key Specifications Table

2. Direct Airflow Path™ Architecture & Dual-Chamber Thermal Isolation

The Corsair Carbide Series Air 540 pioneered the modern dual-chamber cube chassis architecture. Traditional tower PC enclosures force cool intake air to navigate past congested hard drive cages, optical bays, and bulky power supply cable bundles before reaching high-heat silicon components. The Air 540 fundamentally re-engineers this paradigm by splitting the chassis volume vertically into two distinct, isolated physical compartments:

This geometric separation delivers an extraordinary thermal benefit verified by empirical telemetry: solid-state drives housed in the secondary chamber remain virtually immune to GPU and CPU heat plumes, operating at room temperature, while high-TDP enterprise processors sustain low thermal dissipation under sustained prime multi-threading workloads.

3. Active Production Deployment • The “Cube” Workstation Build

Mateo’s Museum Corsair Carbide Air 540 unit is actively deployed as the physical chassis for Marius’ high-reliability workstation build, designated host cube at IPv4 address 192.168.111.71 on the local network. The build brings together carefully selected enterprise server silicon, high-density memory, modern efficient graphics, and proven synchronous MLC storage into a unified platform:

4. Empirical Thermal & Sensor Telemetry Under Load

Empirical diagnostic interrogation of the Corsair Carbide Air 540 “Cube” workstation (host cube at 192.168.111.71) via Linux system sensors, SMART interrogation, and onboard Nuvoton WPCM450 IPMI BMC telemetry confirms the thermal efficacy of the dual-chamber cube architecture:

5. PassMark System Performance Benchmarking Progression

The Supermicro X9SRi-F platform inside the Corsair Carbide Air 540 chassis underwent systematic performance validation and memory scaling baselines recorded in the official PassMark software repository:

6. Authentic Hardware Inspection & Physical Gallery

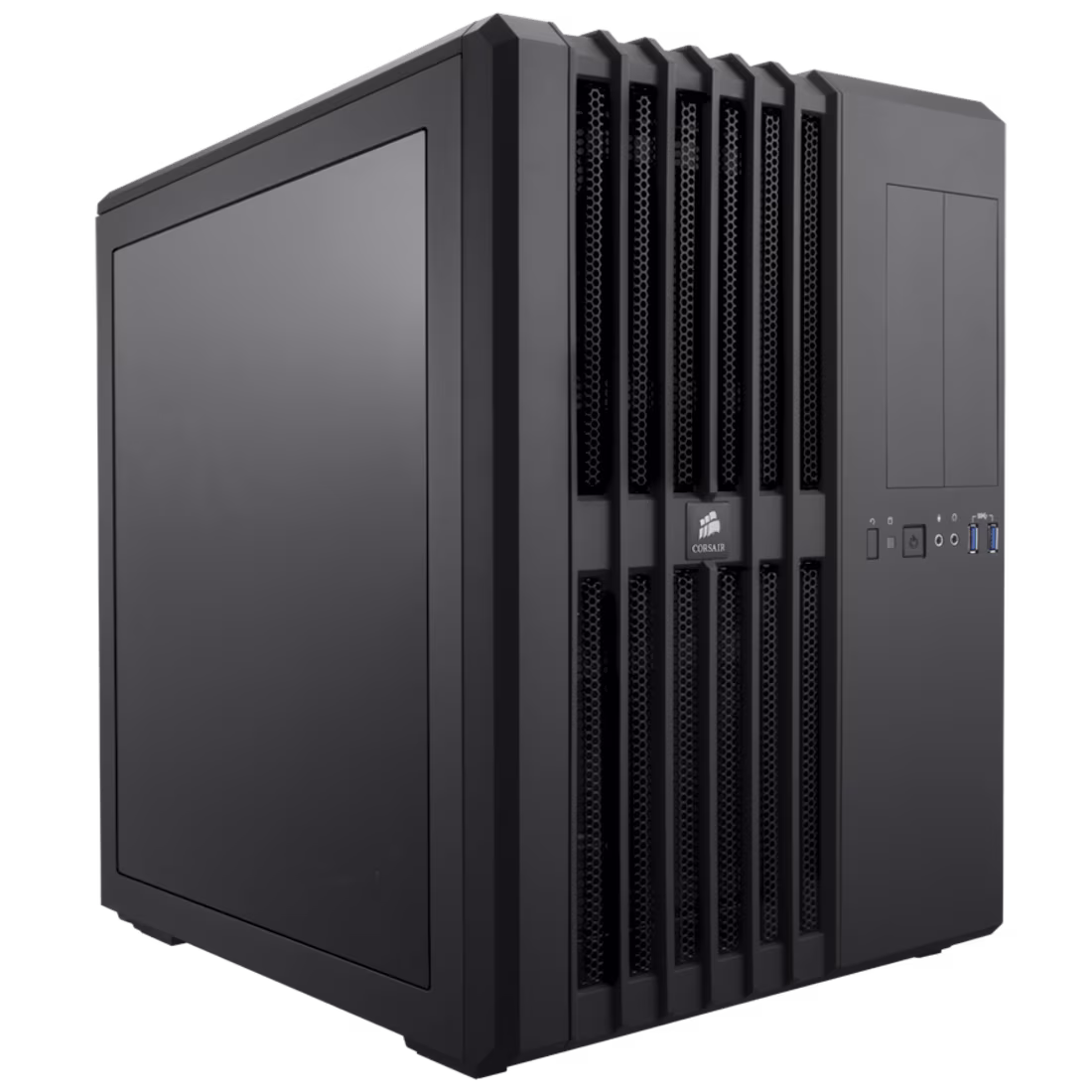

High-resolution physical optical inspection of the Corsair Carbide Series Air 540 ATX cube enclosure preserved in Mateo’s Museum:

7. Curator’s Assessment & Technical Legacy

1. Pioneering Dual-Chamber Paradigm: The Corsair Carbide Series Air 540 stands as one of the most influential chassis designs of the modern PC era. Introduced in 2013, its innovative dual-chamber architecture proved that relocating power supply units, cables, and storage into a dedicated auxiliary zone fundamentally solved the thermal bottlenecks of traditional mid-towers, directly inspiring the subsequent wave of showcase and enthusiast cube cases.
2. Exceptional Thermal Isolation: As evidenced by empirical telemetry in Marius’ active workstation build, the physical isolation of storage from the CPU/GPU chamber keeps the boot SSD at a remarkably low 24.0°C, while the high-TDP (130W) Intel Xeon E5-2680 operates at an astonishingly cool +32.0°C idle to +35.0°C load under continuous 16-thread prime computational stress.
3. Enterprise & Workstation Flexibility: Unlike consumer cases constrained by tight clearances, the Air 540 effortlessly accommodates enterprise-grade server boards such as the Supermicro X9SRi-F, full-length graphics accelerators up to 320 mm, tall 170 mm CPU coolers, and up to 160 GB of Quad-Channel ECC registered memory across all 8 DIMM slots without clearance conflicts.
4. Museum Hardware Provenance: Mateo’s Museum maintains 1 physical unit of the Corsair Carbide Series Air 540 (SKU: CC-9011030-WW). It is actively operational in Marius’ workstation build (host: cube at 192.168.111.71, Ubuntu 22.04.5 LTS, Linux kernel 5.15.0-194-generic), coordinating the complete ecosystem of museum exhibits #2957, #2963, #3101, #3103, #2107, and #2365.
5. System Catalog Integration: The operational build is cataloged as Rank #8 in the Computer Systems Collection (Exhibit #2425) with an official CPU Mark rating of 9,284 points.
