Lenovo Legion 5-15ACH6H Laptop – Type 82JU

Laptop

Legion 5-15ACH6H Laptop (Lenovo) – Type 82JU

  • Serial Number: PF30DHRD
  • Machine Type Model: 82JU003ACK
  • CPU: AMD Ryzen™ 5 5600H (6C / 12T, 3.3 / 4.2GHz, 3MB L2 / 16MB L3)
  • Motherboard Name: Lenovo Legion 5 15ACH6H
  • Motherboard Chipset: AMD K19.5 FCH, AMD K19.5 IMC
  • RAM: 64GB KIT 2 x 32 GB DIMM1: Corsair: DDR4-3200 DDR4 SDRAM (24-22-22-53 @ 1600 MHz)
  • Operating System: Microsoft Windows 11 Pro Version: 25H2
  • Storage Slots: 2 x SSD M.2 2280 PCIe® 3.0×4 NVMe® (4 GB/s)

  • Disk Drive 1: Samsung SSD 990 PRO 2TB (2000 GB, PCI-E 4.0 x4 – 8GB/s) MZ-V9P2T0BW (R: 7450 MB/s, RW: 6900 MB/s)
  • Disk Drive 2: WD
  • GPU: NVIDIA® GeForce RTX™ 3060 6GB GDDR6, Boost Clock 1425 / 1702MHz, TGP 130W
  • WiFi Network Adapter: Intel(R) Wi-Fi 6E AX210 160MHz 2×2 AX; Bluetooth® 5.1
  • LAN Network Adapter: Realtek RTL8168/8111 PCI-E Gigabit Ethernet Adapter – PCI
  • Card Reader: None
  • Optical: None
  • Audio Chip: High Definition (HD) Audio, Realtek® ALC3306 codec
  • Speakers: Stereo speakers, 2W x2, Nahimic Audio
  • Camera: 1x 720P HD with Dual Array Microphone & Electronic Privacy Shutter (E-shutter)
  • Battery: Integrated Li-ion 80Wh | Model: L20D4PC1 | 5210mAh | 78Wh | 15.35 Volt |
  • Power Adapter: 300W Slim Tip (3-pin) | 20 Volt | PN: SA10R16956 Rev.1

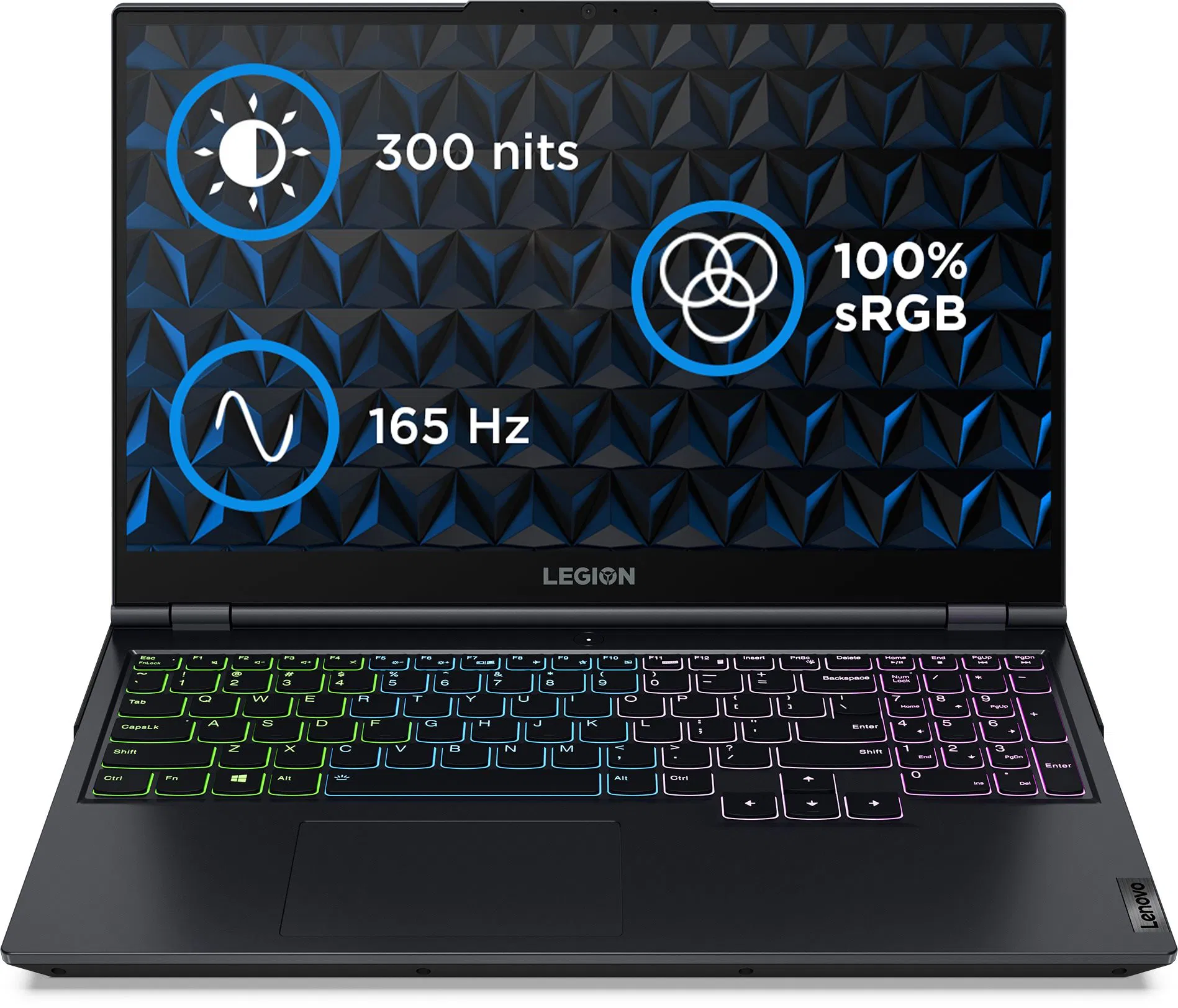

  • Display: 15.6″ FHD (1920×1080) IPS 300nits Anti-glare, 100% sRGB, 165Hz, Dolby Vision®, FreeSync™, G-SYNC®
  • Touchscreen: None
  • Keyboard: 4-Zone RGB Backlit
  • Case Color: Phantom Blue (Top), Shadow Black (Bottom)
  • Surface Treatment: Painting
  • Case Material: PC-ABS (Top), PC-ABS (Bottom)
  • Dimensions (WxDxH): 362.56 x 260.61 x 22.5-25.75 mm
  • Weight: Around 2.4 kg
  • Security Chip: Firmware TPM 2.0
  • Fingerprint Reader: None

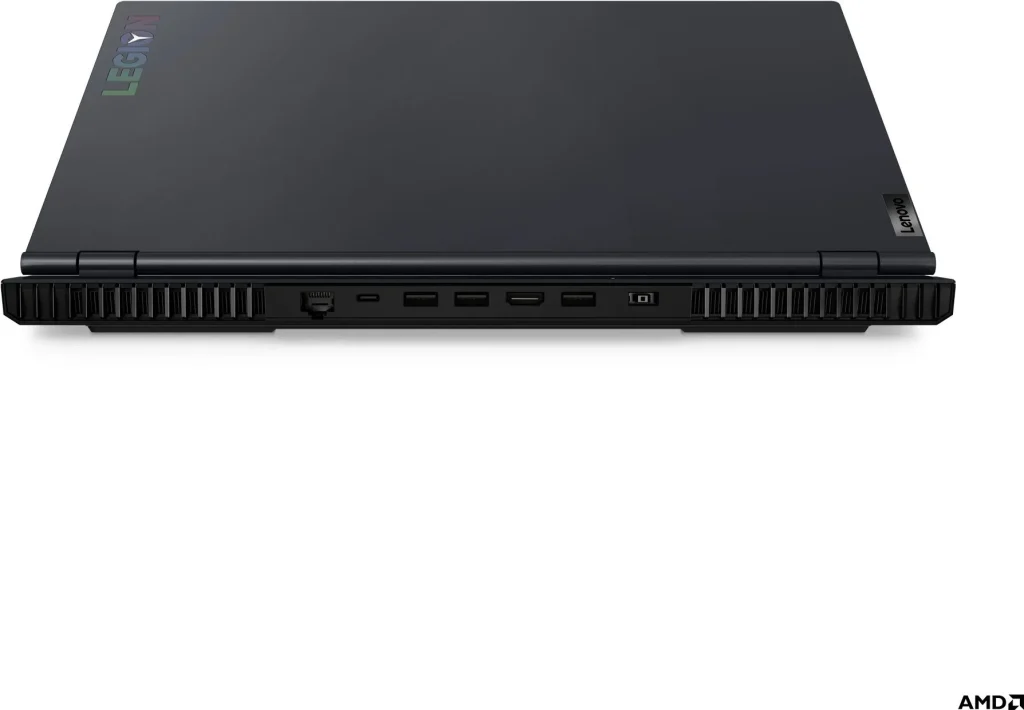

  • Ports:
  • 1x Ethernet (RJ-45)
  • 1x HDMI® 2.1
  • 1x Headphone / microphone combo jack (3.5mm)
  • 1x Power connector
  • 1x USB 3.2 Gen 1 (Always On)
  • 1x USB-C® 3.2 Gen 2 (support data transfer and DisplayPort™ 1.4)
  • 1x USB-C® 3.2 Gen 2 (support data transfer, Power Delivery and DisplayPort™ 1.4)
  • 3x USB 3.2 Gen 1

Lenovo Legion 5 15ACH6H

Type 82JU | AMD Ryzen 5 5600H | 32 GiB DDR4 | GeForce RTX 3060 Laptop | Radeon Vega | Micron 2400 NVMe

Host: legion5OS: CachyOS x86_64Verified: September 3, 2026Method: Live local read-only telemetry

1. Executive System Summary

Processor
6 cores / 12 threads
Ryzen 5 5600H, up to 4.28 GHz
Memory Upgrade
32 GiB installed
2 x 16 GiB, dual-rank DDR4-2400
Graphics
RTX 3060 + Vega
6 GiB GDDR6 plus 4 GiB UMA
NVMe Health
SMART PASSED
2% life used, zero media errors
Battery
86.45% health
69.16 Wh, 233 cycles
Category Property Verified value
Computer Platform ACPI x86-64 notebook, Lenovo Legion 5 15ACH6H
Machine type / family 82JU / Legion 5 15ACH6H
Mainboard Lenovo LNVNB161216, revision SDK0J40709 WIN
Firmware Lenovo GKCN65WW, platform/EC revision 1.65, January 16, 2024
Operating System Distribution / kernel CachyOS x86_64 / Linux 7.2.2-1-cachyos
Desktop KDE Plasma 6.7.4, KWin Wayland 6.7.4, Breeze Dark
Package state 1,536 packages; 0 pending updates; 5 foreign packages; 4 orphaned packages
Memory Physical 32 GiB in two dual-rank 16 GiB DDR4-2400 SODIMMs
Linux usable / swap 27.25 GiB RAM / 27.25 GiB zram
Graphics Discrete NVIDIA GeForce RTX 3060 Laptop GPU, Ampere, 6,144 MiB
Integrated AMD Cezanne Radeon Vega, 4,096 MiB UMA allocation
Storage Internal device Micron 2400 2 TB-class NVMe, NVMe 1.4, Btrfs root

2. Chassis, Mainboard & Firmware

System & Chassis

  • Manufacturer: Lenovo
  • Product: Type 82JU, Legion 5 15ACH6H
  • SMBIOS version: 3.3.0
  • Chassis type: Notebook
  • Chassis lock: Not present
  • Boot-up, power-supply and thermal states: Safe
  • Security status reported by DMI: None

Baseboard

  • Manufacturer: Lenovo
  • Board: LNVNB161216
  • Revision: SDK0J40709 WIN
  • Board type: Motherboard / hosting board
  • Replaceable-board flag: Yes
  • Onboard LAN: Realtek RTL8111E family, enabled
  • Onboard audio reference: Realtek ALC701 DMI label

UEFI Firmware

  • Vendor/version: Lenovo GKCN65WW
  • Release date: January 16, 2024
  • Platform firmware revision: 1.65
  • Embedded controller revision: 1.65
  • ROM size: 16 MiB
  • Runtime mapping: 128 KiB
  • Upgradeable, shadowable, UEFI, ACPI, USB legacy and selectable boot support

3. Processor & Cache Hierarchy

Processor AMD Ryzen 5 5600H with Radeon Graphics
Architecture / socket Zen 3 mobile / FP6
Family / model / stepping 25 / 80 / 0
Topology 1 socket, 6 physical cores, 12 logical processors, 2 threads per core, 1 NUMA node
Frequency range 412.625 MHz minimum to 4,280.985 MHz maximum; boost enabled
DMI clock / voltage 100 MHz external clock / 1.2 V
Scaling amd-pstate-epp, performance governor on all 12 policies
Microcode / BogoMIPS 0xa500012 / 6587.81 per logical processor report

Cache Inventory

Level Per-core / shared size Aggregate DMI properties
L1 data 32 KiB per core 192 KiB Write-back; included in 384 KiB L1; 8-way; multi-bit ECC metadata
L1 instruction 32 KiB per core 192 KiB Internal CPU cache
L2 unified 512 KiB per core 3 MiB Write-back, 8-way, multi-bit ECC metadata
L3 unified Shared package cache 16 MiB Write-back, 16-way, multi-bit ECC metadata

4. Instruction Sets, Virtualization & CPU Security

SIMD & Floating Point

MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, SSE4a, AVX, AVX2, FMA and F16C. AVX-512 is not exposed.

Cryptography

AES-NI, SHA-NI, PCLMULQDQ, VAES, VPCLMULQDQ, RDRAND and RDSEED.

Integer & Memory

BMI1, BMI2, ADX, POPCNT, ABM/LZCNT, CLFLUSHOPT, CLWB, MOVBE, ERMS and 1 GiB pages.

Virtualization

AMD-V/SVM, nested paging, AVIC, VGIF, TSC scaling, VMCB clean bits, decode assists and virtual VMLOAD/VMSAVE.

Platform Security

NX, SMEP, SMAP, UMIP, PKU/OSPKE, user shadow stack, SSBD, IBRS, IBPB and STIBP.

Kernel Vulnerability Status

Status Items
Not affected Meltdown, MDS, L1TF, MMIO stale data, Retbleed, GDS, SRBDS, TAA, Ghostwrite, iTLB multihit, register-file sampling and old microcode
Mitigated Spectre v1, Spectre v2, speculative store bypass, speculative return-stack overflow, TSA and VMSCAPE

5. Memory Controller, DIMM Slots & SPD

Property Channel A Channel B
Capacity 16 GiB 16 GiB
Manufacturer Micron Technology SK hynix
Part number 16ATF2G64HZ-2G3B1 HMA82GS6AFR8N-UH
Form / technology DDR4 unbuffered SODIMM DDR4 unbuffered SODIMM
Native / configured speed 2400 / 2400 MT/s 2400 / 2400 MT/s
Rank / width Dual-rank, 64-bit Dual-rank, 64-bit
Voltage / ECC 1.2 V / non-ECC 1.2 V / non-ECC
Evidence DMI plus valid SPD CRC decode DMI; SPD body not decoded by local utility

Micron SPD Timing Table

SPD revision / CRC DDR4 SPD 1.1; base and module CRC blocks both passed
Rated profile DDR4-2400 / PC4-19200, 17-17-17-39
Supported CAS latencies CL10 through CL21
tCK / tAA / tRCD / tRP / tRAS 0.833 / 13.750 / 13.750 / 13.750 / 32.000 ns
tRC / tRFC1 / tRFC2 / tRFC4 45.750 / 350 / 260 / 160 ns
tFAW / tRRD-S / tRRD-L 21.000 / 3.300 / 4.900 ns
tCCD-L / tWR / tWTR-S / tWTR-L 5.000 / 15.000 / 2.500 / 7.500 ns
Module construction x8 devices, symmetrical dual-rank, 30 mm high, no thermal sensor, manufactured 2016 week 44

Linux exposes 27.25 GiB. The integrated Radeon reports a 4,096 MiB UMA allocation, accounting for most of the difference from 32 GiB installed; firmware and MMIO reservations account for the remainder. No hardware-corrupted or offline memory was reported. This inventory is not a long-duration RAM stress test.

6. Chipset, PCIe Fabric & IOMMU

Bus Controller PCI ID Driver / link
00:00.0 AMD Renoir/Cezanne root complex 1022:1630 Platform root
00:00.2 AMD Renoir/Cezanne IOMMU 1022:1631 DMA remapping
01:00.0 NVIDIA GA106M RTX 3060 Laptop 10de:2560 nvidia, Gen3 x8 active
01:00.1 NVIDIA GA106 HDMI/DP audio 10de:228e snd_hda_intel
02:00.0 Micron 2400 NVMe 1344:5413 nvme, Gen3 x4 active
03:00.0 Realtek RTL8111/8168/8211 Ethernet 10ec:8168 r8169, Gen1 x1
04:00.0 Intel AX210 / AX1675 Wi-Fi 6E 8086:2725 iwlwifi, Gen2 x1
05:00.0 AMD Cezanne Radeon Vega 1002:1638 amdgpu, Gen3 x16
05:00.2 AMD Platform Security Processor 1022:15df ccp
05:00.3/4 AMD Renoir/Cezanne USB 3.1 xHCI 1022:1639 xhci_hcd
05:00.5 AMD audio coprocessor 1022:15e2 ACP/SOF modules
05:00.6 AMD Ryzen HD Audio 1022:15e3 snd_hda_intel
06:00.0/1 AMD FCH SATA AHCI controllers 1022:7901 ahci; no SATA disk enumerated

The IOMMU exposes 23 groups. NVIDIA graphics and its HDMI-audio function share one group; the NVMe, Ethernet, Wi-Fi, Radeon, security processor, USB, audio and SATA functions occupy distinct relevant groups. This topology is informative for virtualization but is not a passthrough validation.

7. NVIDIA GeForce RTX 3060 Laptop GPU

GPU / architecture NVIDIA GeForce RTX 3060 Laptop GPU / Ampere GA106M
PCI / subsystem ID 10de:2560 / Lenovo 17aa:3a80
Driver / VBIOS 610.57.04 / 94.06.13.40.81

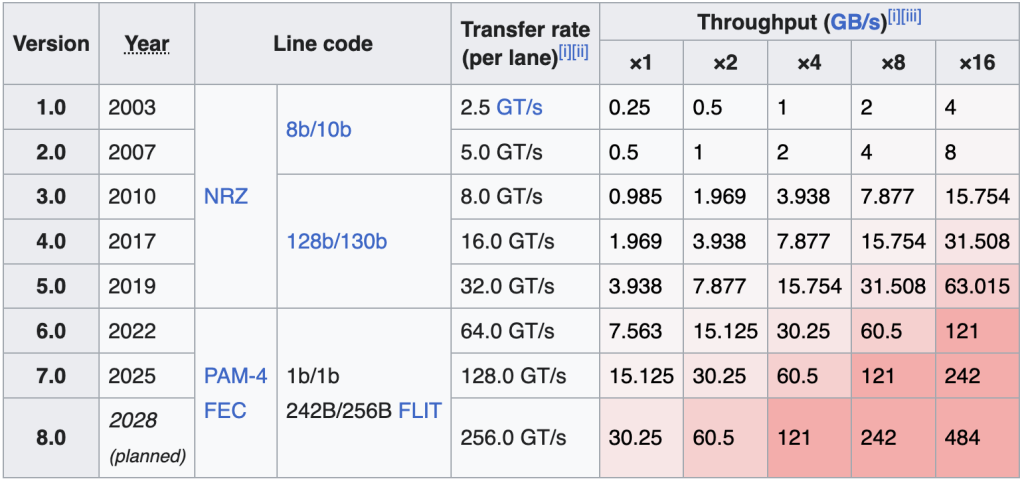

PCIe link Generation 3 x8 active; device supports Gen4; host supports Gen3; function advertises x16 capability
Framebuffer memory 6,144 MiB total; 341 MiB reserved; 41 MiB used; 5,764 MiB free
BAR1 aperture 8,192 MiB total; 41 MiB used
Power limits 80 W default requested limit; 1 W minimum; 130 W maximum ceiling
Inspection state P0; 43 C; about 24.8 W; 9% GPU utilization; 0 encoder sessions
Current clocks Graphics 1,425; SM 1,425; memory 7,001; video 1,260 MHz
Maximum clocks Graphics 2,100; SM 2,100; memory 7,001; video 1,950 MHz
Compute Default compute mode; CUDA 13.3 toolchain; NVIDIA OpenCL platform; Vulkan 1.4.341 API
Display path No active display attached to NVIDIA connectors; internal panel driven through AMD Radeon

KWin held a small 7 MiB compute allocation, so P0 and the captured clocks are not an idle baseline. The NVIDIA driver reported a target temperature of 87 C, slowdown at 102 C and shutdown/max operating temperature at 105 C.

8. AMD Radeon Vega & Display EDID

Integrated Graphics

  • AMD Cezanne Radeon Vega, PCI 1002:1638
  • amdgpu kernel driver, Mesa 26.2.2
  • 4,096 MiB unified/UMA video-memory allocation
  • OpenGL 4.6 core and compatibility, GLSL 4.60
  • OpenGL ES 3.2
  • RADV Vulkan 1.4.354, conformance 1.4.5.3
  • Inspection: 46 C, 6 W PPT, 400 MHz

Internal Panel

  • AU Optronics model 22677 / B156HAN12.H
  • EDID 1.4, manufactured 2020 week 36
  • 344 x 193 mm active area, 15.6-inch class
  • Embedded DisplayPort, 10 bits per primary channel
  • Native 1920 x 1080 at 165.009778 Hz
  • Gamma 2.20, RGB 4:4:4
  • Brightness 800/800 at collection
EDID timing field Value
Pixel clock 405.000 MHz
Horizontal frequency 194.712 kHz
Vertical range 60 to 165 Hz
Horizontal porch / sync / back porch 16 / 16 / 128 pixels
Vertical porch / sync / back porch 3 / 14 / 83 lines

KDE reported scale 1.0, sRGB color source, HDR and wide-gamut unavailable, VRR set to never, and no ICC profile. Disconnected NVIDIA DRM outputs comprised two DisplayPort connectors, one HDMI connector and one eDP path.

9. NVMe Controller & SMART Telemetry

SMART PASSED

Critical warning: 0

2% life used

100% spare available

37 C

0 warning-temp minutes

0 media errors

0 error-log entries
Model / firmware Micron 2400 MTFDKBK2T0QFM / V3MA002
Capacity / protocol 2,048,408,248,320 bytes / NVMe 1.4
Logical / physical sector 512 / 512 bytes
PCIe capability / active link Gen4 x4 capable / Gen3 x4 active on the Cezanne host
Power-on hours / cycles 4,191 hours / 1,083 cycles
Unsafe shutdowns 116
Host reads / writes 577,563,776 / 432,297,555 commands
Data units read / written 55,560,681 / 50,540,197
Controller busy time 8,999 minutes

Sticky PCIe correctable-error and unsupported-request status bits were set, but the current kernel log contained no matching AER failure, SMART had zero error-log entries and Btrfs had zero device errors. This is a monitor-for-recurrence item, not evidence of media failure.

10. Partition Map, Btrfs & Boot Environment

Micron 2400 NVMe, 2.048 TB / 4,000,797,360 sectors
|
+-- EFI System Partition     4 GiB FAT32  -> /boot  (84% used)
|
+-- Linux partition       1.8 TiB Btrfs  -> /, /home, /root, /srv,
|                                           /var/cache, /var/log, /var/tmp
|
+-- Approximately 44.7 GiB currently outside the GPT partition layout
Area Allocation Used Profile
Btrfs data 316.01 GiB 310.08 GiB Single
Btrfs metadata 3.00 GiB 2.06 GiB DUP
Btrfs system 8 MiB 64 KiB DUP
Estimated free 1.51 TiB Device missing: 0 No multiple profiles
  • Btrfs write, read, flush, corruption and generation error counters: all zero.
  • No completed scrub statistics are recorded; this is not proof of a recent scrub.
  • EFI partition: 4.0 GiB, 3.4 GiB used, 679 MiB available, 84% full.
  • Limine 12.7.0 with regular, LTS, fallback and snapshot boot ordering.
  • Installed kernels: CachyOS 7.2.2 and LTS 6.18.48.
  • Secure Boot disabled; TPM 2.0 supported.

11. Network Adapters, Wi-Fi Radio & Bluetooth

Interface Hardware Driver / firmware State
wlan0 Intel AX210 / AX1675 2×2 Wi-Fi 6E iwlwifi / 89.f7dcb3ee.0 Active, 6 GHz
eno1 Realtek RTL8111/8168/8211 Gigabit r8169 / rtl8168h-2_0.0.2 No carrier
tailscale0 Tailscale tunnel Tailscale 1.102.3 Online

Live Wi-Fi Link

6 GHz / 6135 MHz
-53 dBm signal
1,921.5 Mbit/s RX
160 MHz, HE-MCS 9, 2 streams
1,020.8 Mbit/s TX
80 MHz, HE-MCS 11, 2 streams
  • 2 transmit and 2 receive antennas.
  • 2.4, 5 and 6 GHz bands; 160 MHz, LDPC and 1024-QAM support.
  • Managed, AP, AP/VLAN, monitor, IBSS and Wi-Fi Direct roles exposed.
  • Gigabit Ethernet advertises 10/100 half/full and 1000BASE-T full duplex with autonegotiation.
  • Bluetooth HCI version 13 with BR/EDR, LE, secure connections, privacy, wide-band speech and connected-isochronous-stream capability.

The public report omits SSID, BSSID, MAC addresses, private IP addresses, tailnet addresses and account identity.

12. Audio, Camera, USB & Physical Ports

Audio Subsystem

  • Realtek ALC287 analog codec, playback and capture
  • NVIDIA GPU 9f HDMI/DP codec
  • Four NVIDIA digital playback PCM devices
  • PipeWire 1.6.8 with WirePlumber
  • Default format: float32 stereo, 48 kHz
  • AMD analog stereo selected as default sink/source

Camera & USB Devices

  • Chicony UVC camera, 1280×720 MJPEG
  • Logitech Unifying Receiver, 3 HID interfaces
  • Intel AX210 Bluetooth USB function
  • ITE 8910 and ITE 8295 HID controllers
  • Genesys USB 2.0 hub at 480 Mbit/s
  • Genesys GL3523 hub at 5 Gbit/s
  • AMD root buses expose 480 Mbit/s and 10 Gbit/s

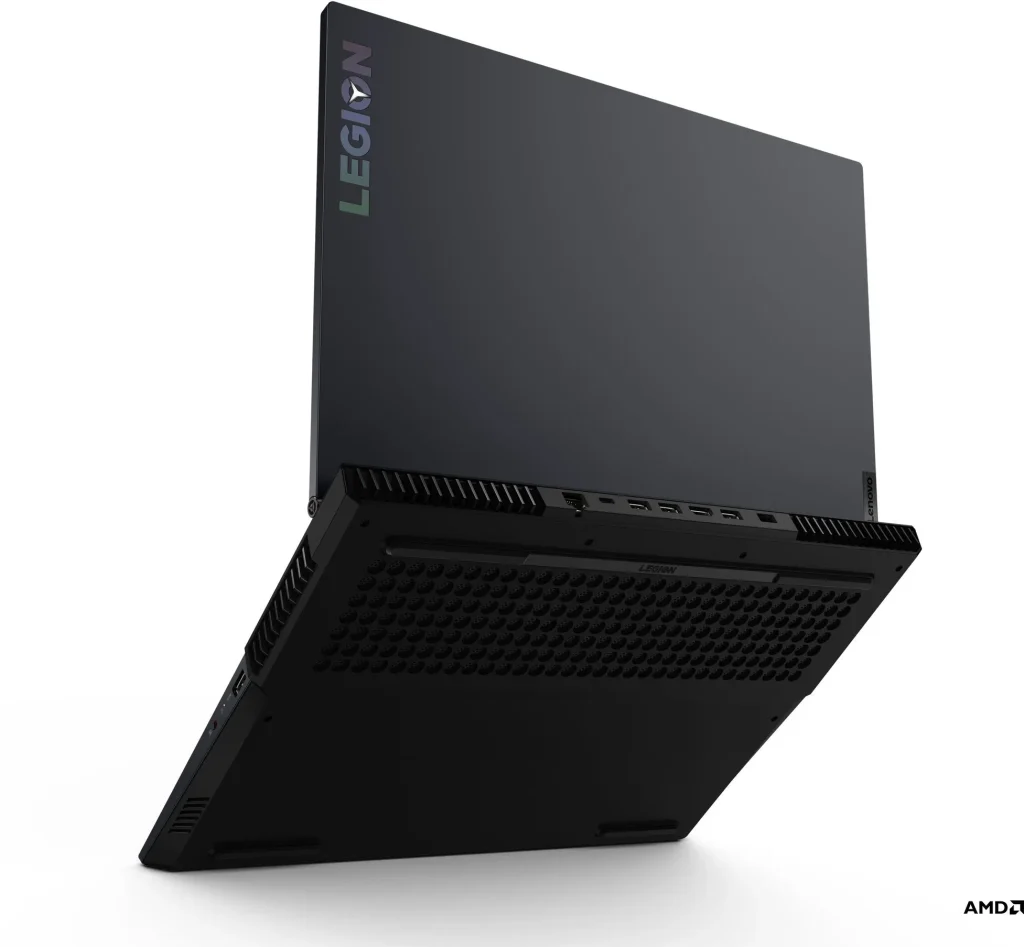

External Port Inventory

Port Configuration Evidence
USB-A 4 x USB 3.2 Gen 1, one Always On Published model specification; USB controllers live
USB-C 2 x USB-C 3.2 Gen 2; DisplayPort 1.4 on both; Power Delivery on one DMI confirms two Type-C receptacles; capabilities from model specification
Video HDMI 2.1 plus USB-C DisplayPort paths Published model specification and live DRM connectors
Network RJ-45 Gigabit Ethernet DMI and live Realtek controller
Audio 3.5 mm headset combination jack DMI and live ALC287 codec
Power Lenovo Slim Tip, published 300 W adapter AC online; wattage not exposed by Linux

13. Thermal Sensors, Cooling & Battery

CPU Tctl

53.8 C

NVIDIA GPU

43 C

Radeon edge

46 C

NVMe

37 C

Wi-Fi

45 C

Both yogafan channels reported 0 RPM. Lenovo fan-stop behavior or incomplete EC sensor reporting can produce zero at light load; measured temperatures do not indicate a cooling emergency. This was not a stress test.

Battery Sunwoda L20D4PC1, lithium-polymer
Design / current full energy 80.00 / 69.16 Wh
Health / wear 86.45% health / 13.55% below design capacity
Charge cycles / state 233 / fully charged at 100%, AC online
Voltage 16.872 V observed; 15.36 V minimum design
Charge thresholds Supported
Power profiles Performance active; low-power, balanced, performance and custom available

14. Operating System & Development Stack

Layer Version / state
Distribution CachyOS rolling release, Arch-derived, x86-64
Kernel 7.2.2-1-cachyos, PREEMPT_DYNAMIC, built August 28, 2026
Desktop KDE Plasma / KWin 6.7.4 on Wayland 1.26.0; Qt 6.11.2
Audio stack PipeWire 1.6.8 with WirePlumber and PulseAudio compatibility
Mesa / OpenGL Mesa 26.2.2; OpenGL 4.6; GLSL 4.60; OpenGL ES 3.2
Vulkan Loader 1.4.357; RADV 1.4.354 and NVIDIA 1.4.341 devices
NVIDIA compute Driver 610.57.04; CUDA compiler 13.3; NVIDIA OpenCL ICD
Compilers GCC 16.2.1; Clang 22.1.8; GNU Binutils 2.47; glibc 2.44
Python / shell Python 3.14.7 / Bash 5.3.15
Package inventory 1,536 total; 5 foreign; 4 orphaned; 0 pending updates
Boot timing 32.095 s total; graphical target after 3.849 s userspace
Locale / clock en_US.UTF-8; Europe/Prague; NTP synchronized; RTC in UTC

15. Boot Security, Firmware Surfaces & Services

Boot & Security

  • UEFI boot with Limine 12.7.0
  • Secure Boot disabled
  • TPM 2.0 supported; AMD TPM firmware 3.92.0.5
  • AMD secure processor firmware 00.11.01.81
  • UEFI dbx revocation database version 20250902
  • Measured UKI and measured OS not active

fwupd Inventory

  • Lenovo system firmware: capsule update capable
  • Micron NVMe: updatable, AC and shutdown required
  • Chicony camera firmware 27.36
  • Genesys hub firmware 71.0
  • Logitech receiver RQR24.11_B0036
  • No firmware metadata refresh or update performed

Active Services

  • PatchMon agent 2.0.2: active and enabled
  • Tailscale 1.102.3: active, enabled and online
  • NetworkManager: active and enabled
  • Bluetooth: active and enabled
  • QNAP automount units active, mounts not triggered
  • Failed systemd units: zero

17. Diagnostic Assessment & Priorities

Severity Finding Recommended action
High UFW inactive; ordinary inbound policy accepts traffic Restore and validate default-deny host firewall separately
Healthy 2 x 16 GiB upgrade detected across channels A/B at DDR4-2400 Keep configuration; run offline extended memory test if stability proof is required
Medium Protective MBR/GPT boundary leaves approximately 44.7 GiB outside partition map Repair/expand only after verified backup in a separate storage operation
Medium EFI partition is 84% full near its 85% Limine threshold Review before adding kernels, fallback images, UKIs or snapshots
Medium No completed Btrfs scrub statistics Establish a recurring scrub and verify completion separately
Medium Former secondary Kingston NVMe absent Confirm intentional removal; do not use the historical destructive script
Information NVMe records 116 unsafe shutdowns Track for growth; SMART and Btrfs error counters are currently clean
Information Secure Boot disabled Keep as an explicit posture decision; TPM 2.0 remains available
Healthy NVMe SMART passed, 2% life used, zero media errors Continue monitoring
Healthy No failed systemd units or pending package updates No immediate OS maintenance blocker
Healthy Battery retains 86.45% design capacity after 233 cycles Continue trend monitoring

18. Collection Method, Limits & Privacy

Tools: fastfetch, hostnamectl, lscpu, procfs/sysfs, dmidecode, decode-dimms, lspci, IOMMU sysfs, nvidia-smi, glxinfo, vulkaninfo, clinfo, EDID decoder, lsblk, smartctl, sfdisk, Btrfs tools, NetworkManager, iw, ethtool, btmgmt, ALSA, PipeWire, V4L2, sensors, UPower, fwupd, systemd, UFW and nftables.

Not performed: CPU/GPU/RAM stress testing, destructive memory testing, storage benchmark, SMART self-test write, partition repair, Btrfs expansion, firmware refresh/update, package installation, firewall change, dormant network-share mount or chassis opening.

Privacy: this WordPress artifact omits chassis and drive serials, MAC addresses, filesystem UUIDs, exact private and tailnet IPs, Wi-Fi identity, account identifiers and all credential metadata. Part numbers, PCI IDs and firmware versions are retained because they describe the hardware model rather than a private access secret.

AIDA64-style report compiled from live read-only telemetry on September 3, 2026. CZ-BRN-NEU Infrastructure Operations.
