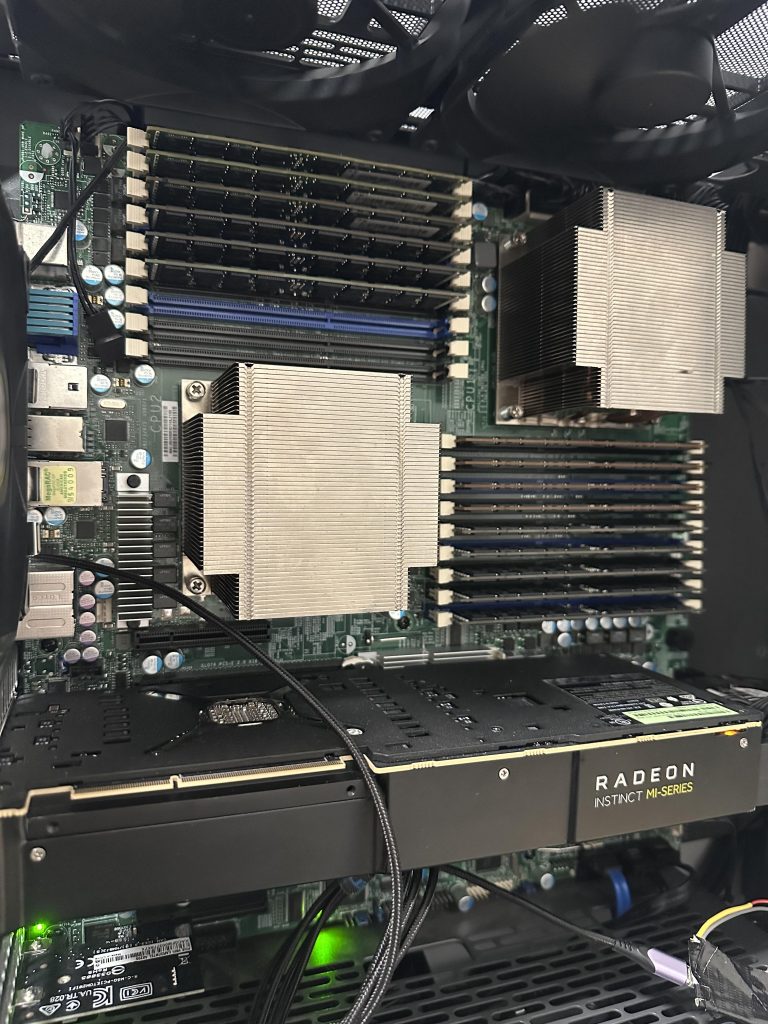

AMD Radeon Instinct MI50 32GB GPU Name: Vega 20 GL Architecture: GCN 5.1 (7 nm TSMC FinFET) Transistors: 13,230 million Die Size: 331 mm² Stream Processors: 3,840 Compute Units: 60 TMUs: 240 ROPs: 64 Core Clock: 1200 MHz Boost Clock: 1746 MHz Memory Size: 32 GB HBM2 Memory Bus: 4096-bit Bandwidth: 1.02 TB/s TDP: 300 W PassMark G3D Mark: 13,571 (Rank #188) Museum Inventory: 1 unit, added active turbine blower cooler, installed in Supermicro X8DAH Dual Xeon Workstation.

Comprehensive technical specification and architectural dossier for the Supermicro X9SRi-F server motherboard. Details Intel C602 chipset, Socket R (LGA 2011), Quad-Channel DDR3 support up to 256GB, PCIe 3.0 lane allocation, SATA 3.0/2.0 topology, and dedicated IPMI 2.0 remote management. Verified physical unit (PCB Rev 1.20, S/N: ZM14BS021242, AMI BIOS 3.3, IPMI BMC 3.64) actively deployed in Corsair Carbide Air 540 workstation.

Supermicro X8DAH Dual Xeon Workstation Report Type: System Diagnostic & Hardware Inventory • Target Host: supermicro (192.168.xxx.xxx) • Site: CZ-BRN-NEU Verification Date: August 24, 2026 1. System Summary & Computer Overview Category Property Value Computer Computer Type ACPI x64-based Multi-Processor Server / Workstation Hostname supermicro System Vendor Supermicro Product Model X8DAH (Version: 1234567890) Motherboard Supermicro X8DAH Motherboard MAC 04:ed:33:c3:5e:5b (Wi-Fi) / 00:25:90:e6:21:4a (LAN1) Operating System OS Distribution Debian GNU/Linux 13 (Trixie) x86_64 Kernel Release Linux 6.12.101+deb13-amd64 (#1 SMP PREEMPT_DYNAMIC) Compiler…
