Commodore 1541 — 5.25″ Single Floppy Disk Drive for the Commodore 64 & VIC-20
Introduction Date: 1982 | Discontinued: Late 1980s | Device Type: External single-sided floppy disk drive
The Commodore 1541 was the iconic companion drive for the Commodore 64 and VIC-20, bringing 5.25″ floppy disk storage to millions of home users.
Overview
The 1541 connected via Commodore’s serial bus, allowing programs, games, and data to be stored and retrieved far faster than cassette tapes. Despite its modest speed and certain quirks, it became one of the most widespread floppy drives of the home computer era.
Technical Specifications
| Media | 5.25″ Single-Sided, Double-Density (SS/DD) floppy disks |
|---|---|
| Formatted Capacity | 170 KB per disk side (35 tracks) |
| Encoding | GCR (Group Code Recording) |
| Data Transfer Rate | ~300 bytes/sec (standard Commodore serial protocol) |
| Average Access Time | ~1 second per track step (mechanical head movement) |
| Controller | MOS 6502 CPU @ 1 MHz, onboard ROM & RAM |
| Interface | Commodore Serial IEEE-488 derivative (IEC bus) |
| Power | Internal PSU (mains connected directly to drive) |
| Enclosure | Plastic case, beige color to match Commodore computers |
| Dimensions / Weight | Approx. 14 × 8 × 4.5 in (35.6 × 20.3 × 11.4 cm), ~5 kg |

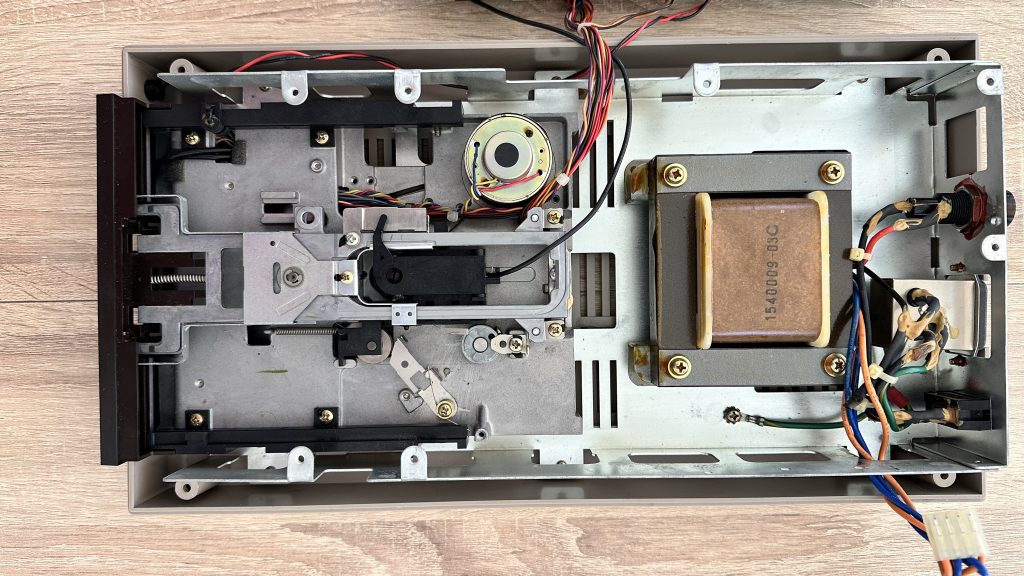

Design & Internals
- Contains a full MOS 6502-based microcomputer for disk control.
- Mechanism: single-sided, single read/write head, stepper motor positioning.
- Analog and digital control boards inside; known for heat buildup.
- Integrated power supply inside the main housing, increasing weight and heat output.
Performance & Quirks
- Notorious for slow load times — users often turned to “fast loader” cartridges or custom software to accelerate disk access.
- Prone to misalignment if disks were inserted roughly; required occasional calibration.
- Generated significant heat due to the internal PSU.
Compatibility
Fully compatible with Commodore 64, VIC-20 (with DOS 2.6 firmware), and later Commodore 128 (in C64 mode). Supported by a vast software library, from commercial games to homebrew utilities.
Historical Context
Launched alongside the C64, the 1541 gave home users the speed and flexibility of floppy storage at a time when many still relied on cassette tapes. Its distinctive chunky design and whirring drive sounds became part of the Commodore computing experience. Despite its quirks, the 1541 was produced in the millions and remains a beloved piece of computing history.
Collector Notes
- Original boxed units with manuals and cables are highly collectible.
- Functional units still fetch interest, especially among retro gamers.
- Common modifications include cooling fan retrofits and alignment fixes.
