Nintendo N64

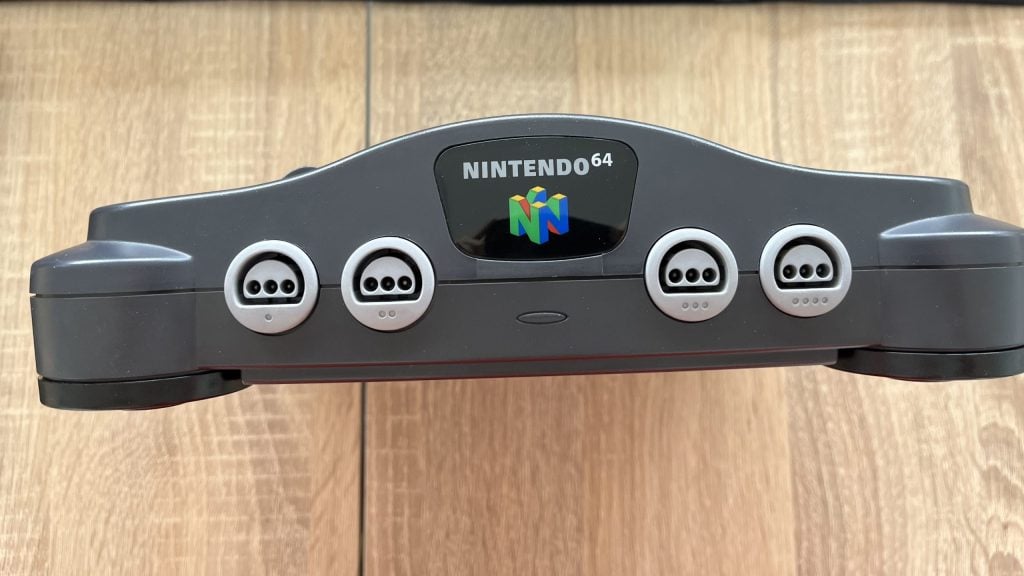

N64 Front

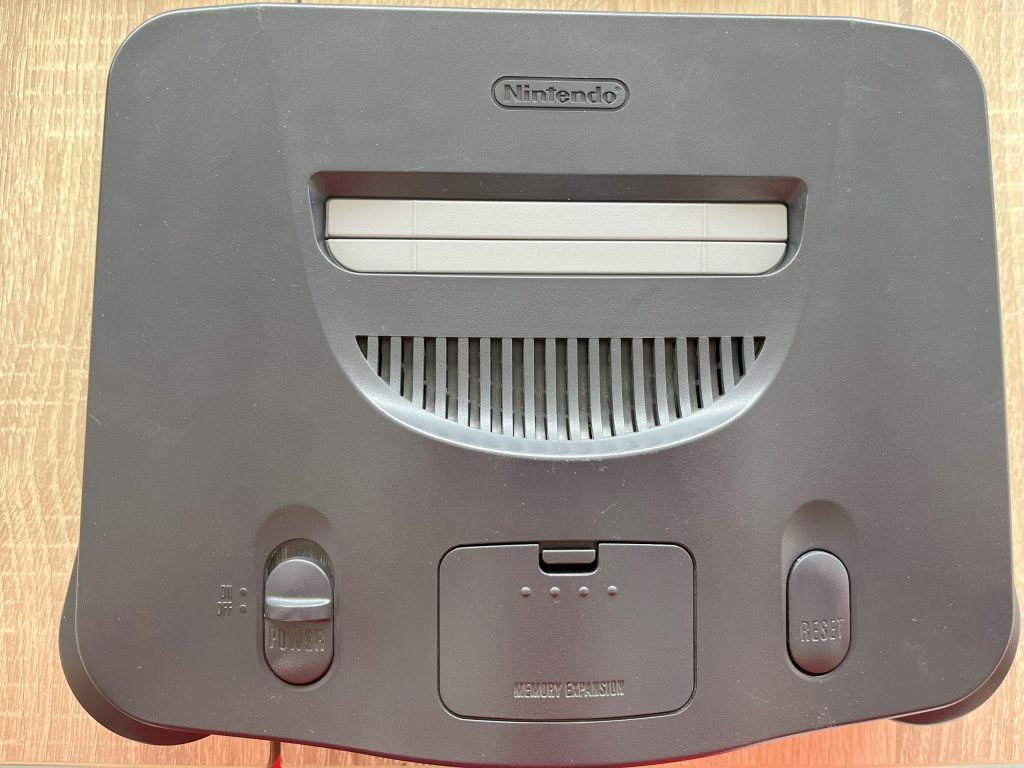

N64 Top

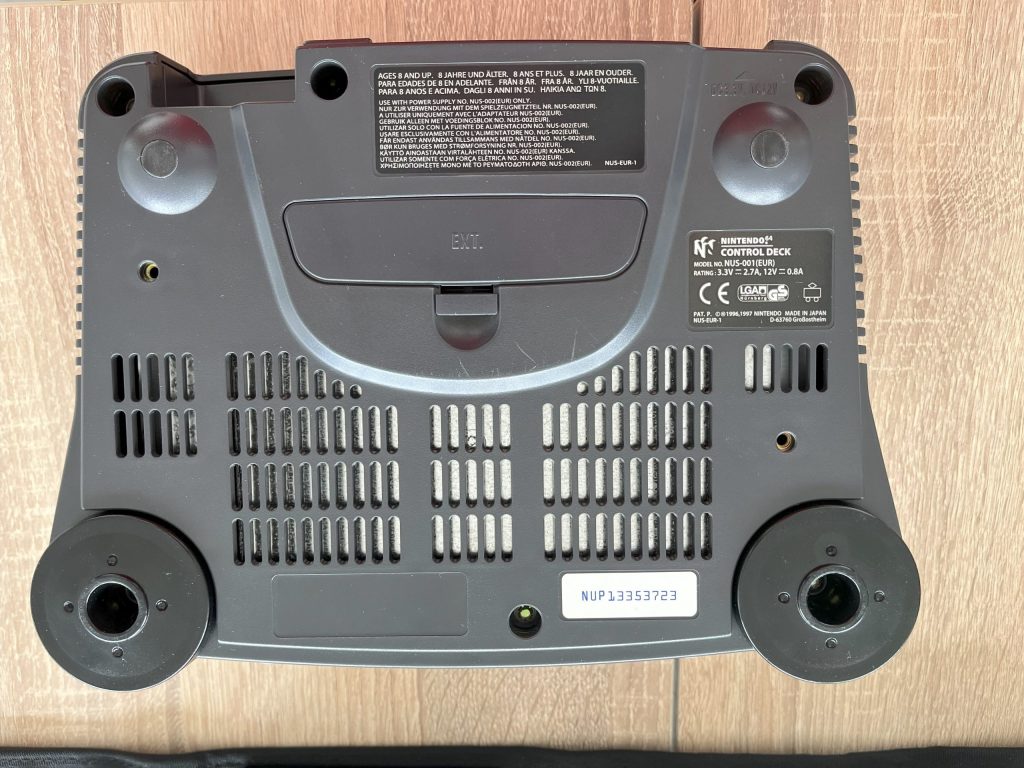

N64 Bottom

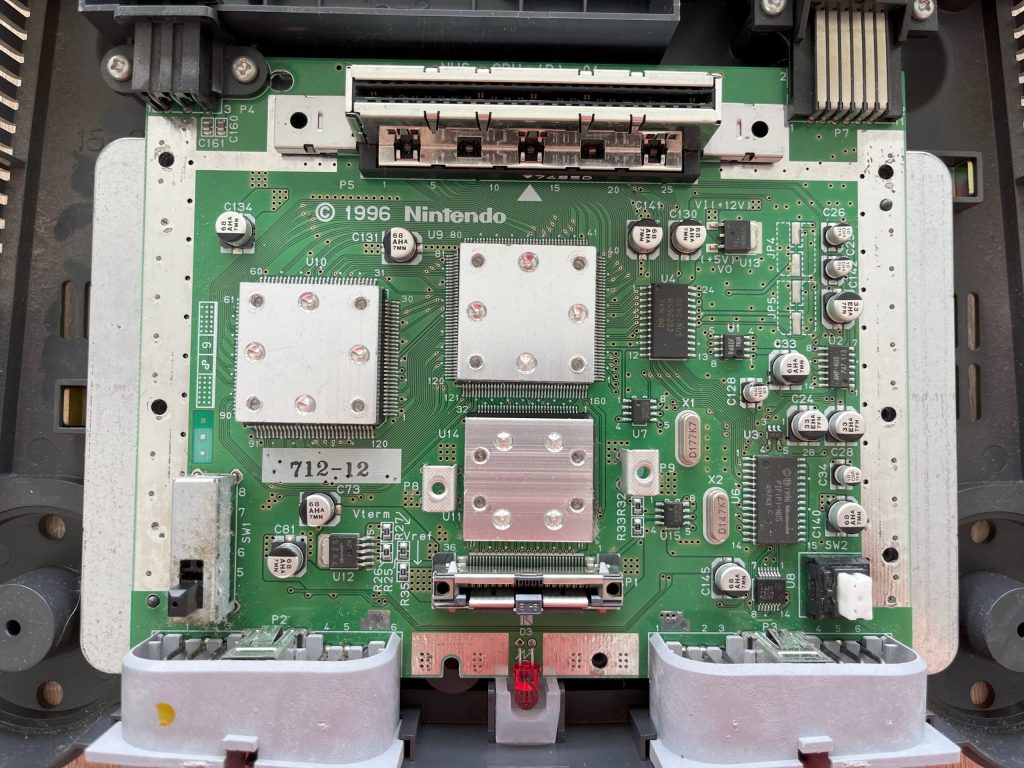

N64 Motherboard

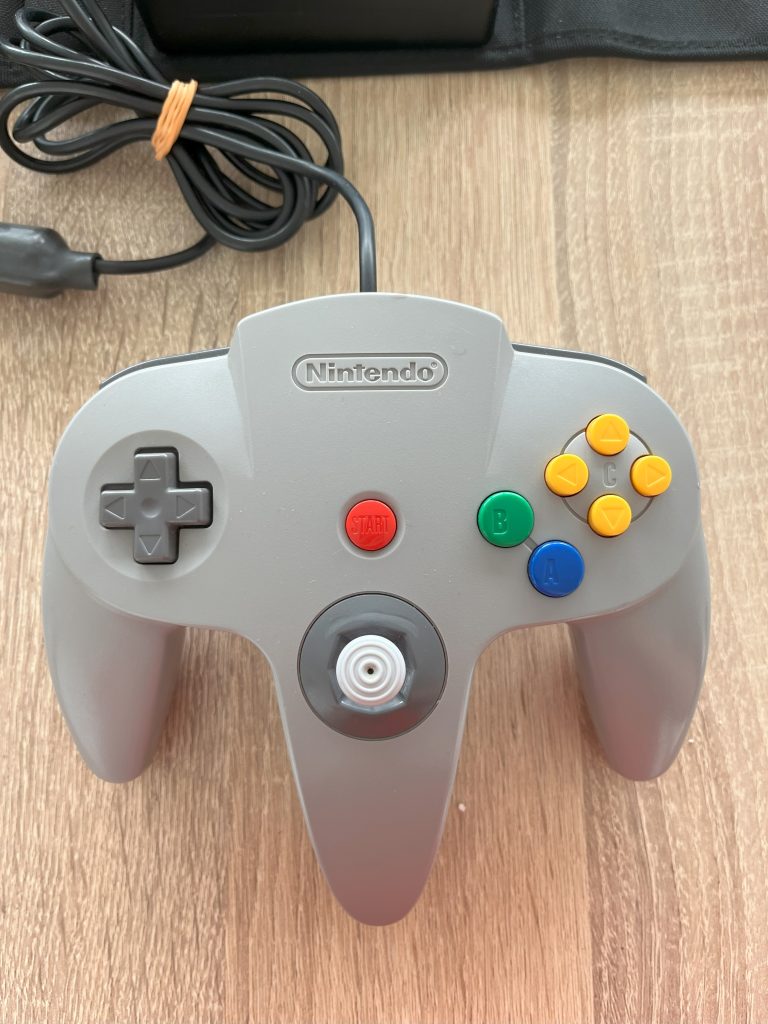

N64 Controller front

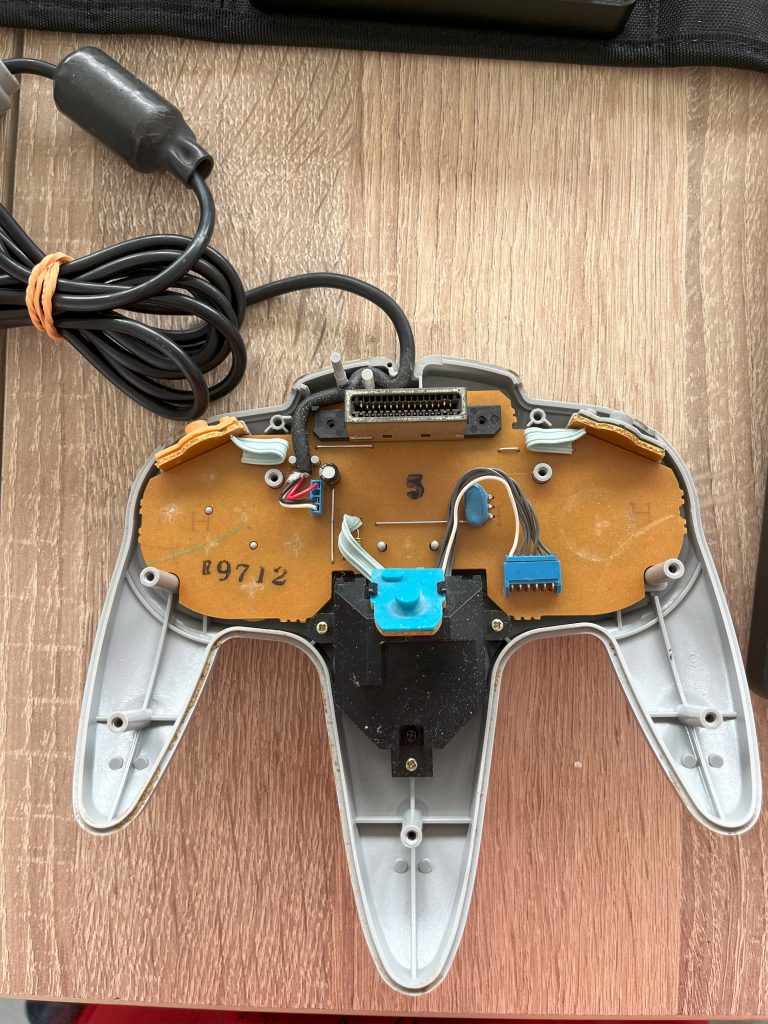

Inside N64 controller inside

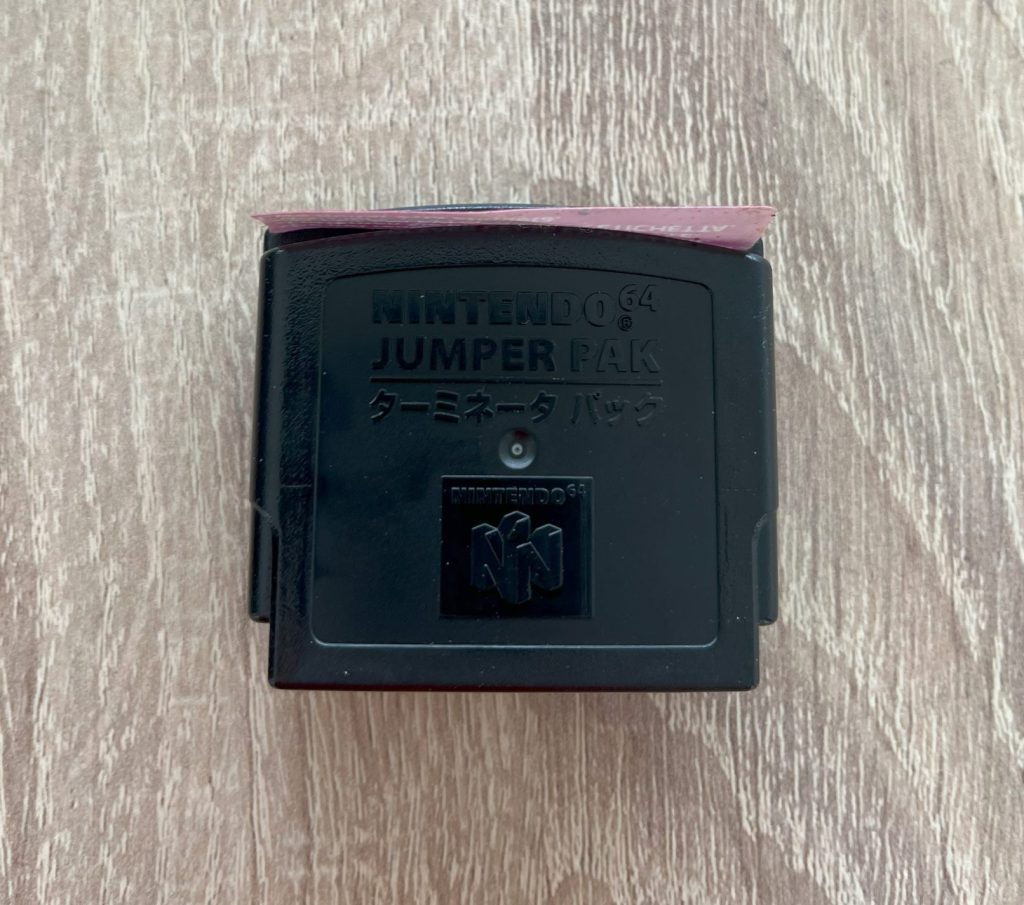

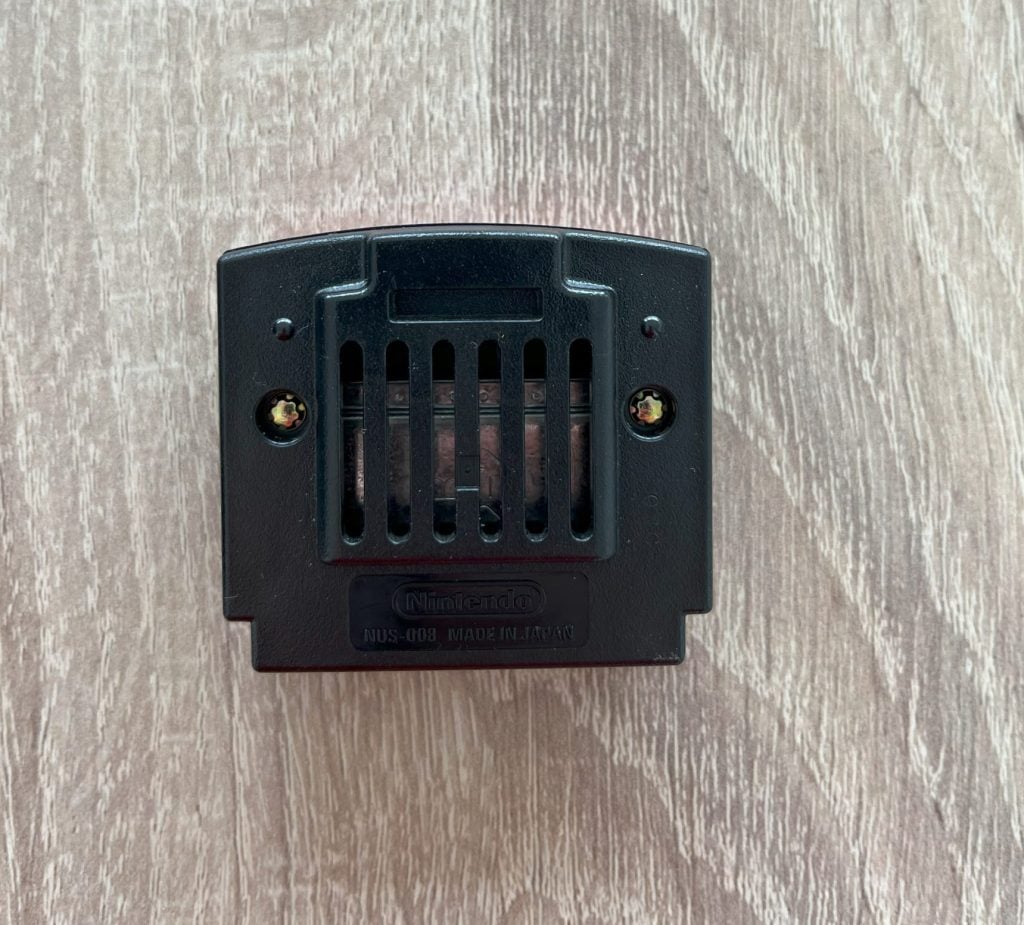

N64 Jumper PAK front

N64 Jumper PAK back

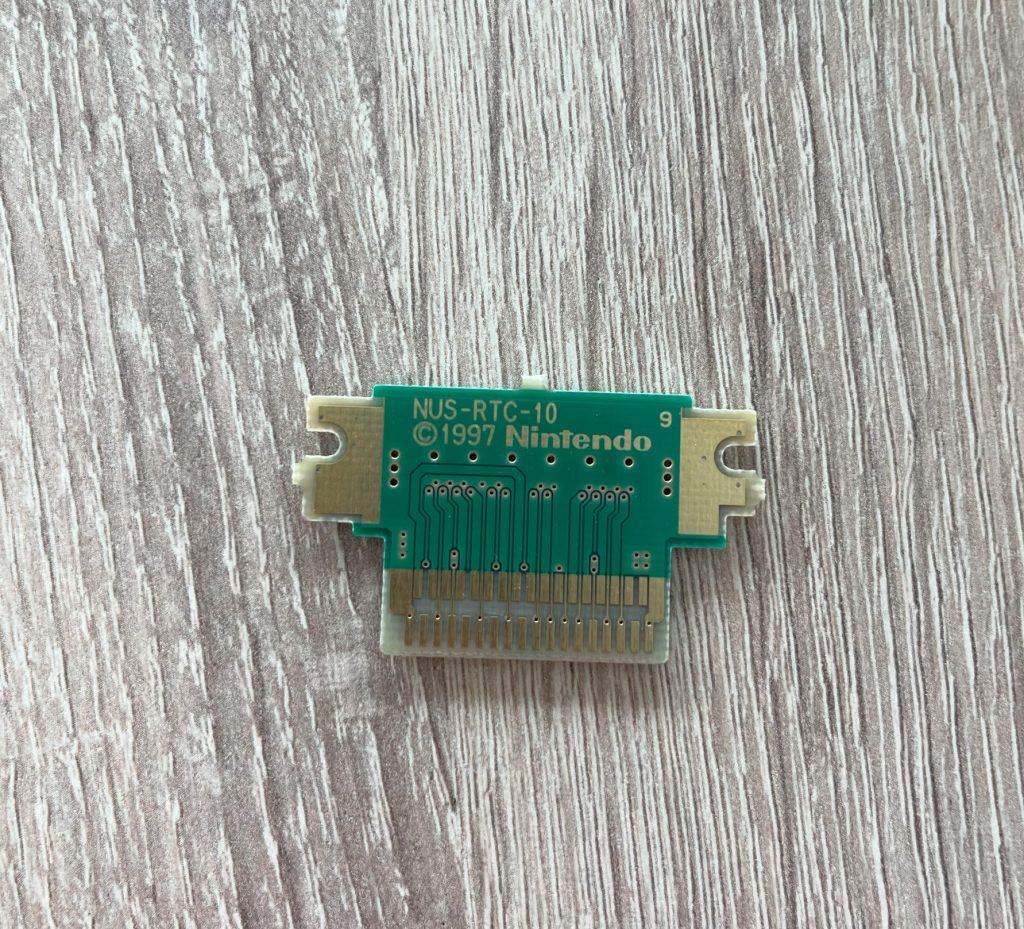

N64 Jumper PAK board front

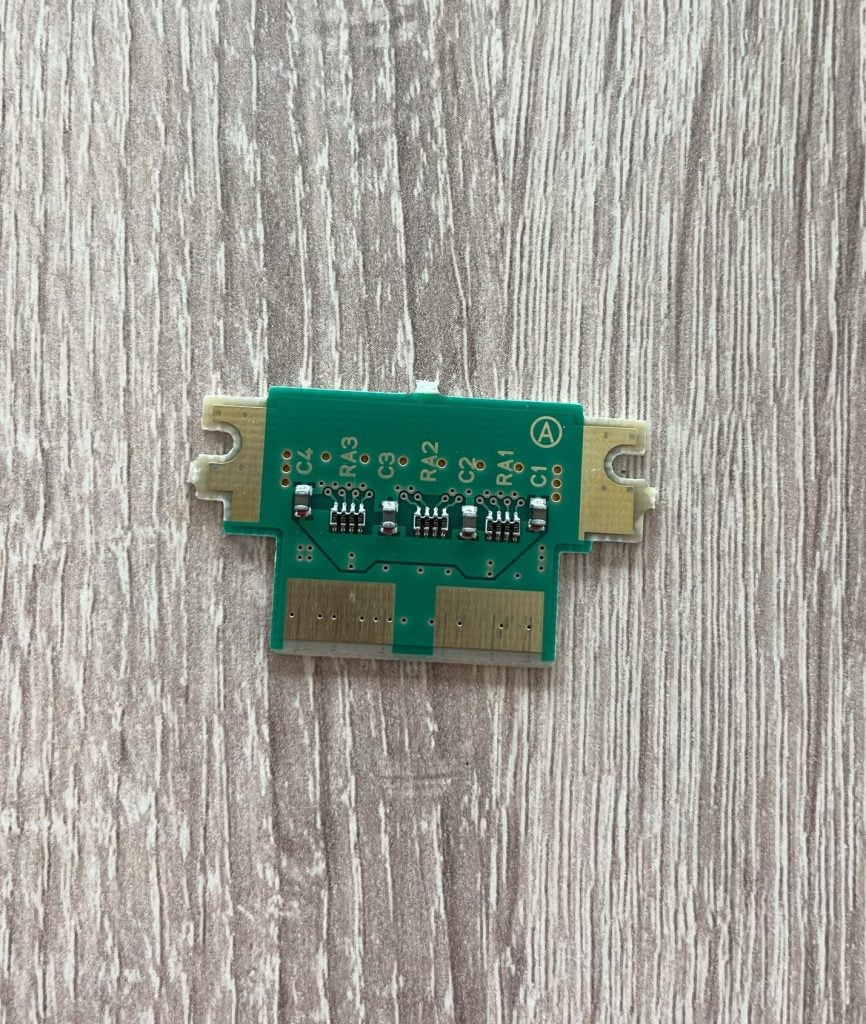

N64 Jumper PAK board back

Details

• https://wiki.console5.com/wiki/N64
• released:  June 23, 1996 in Japan
• 64 comes from the 64 bit CPU
• CPU: 64-bit NEC VR4300 @ 93.75 MHz
• Memory: 4 MB Rambus RDRAM (8 MB with Expansion Pak)
• Storage: 4–64 MB Game Pak
• Removable storage: 32 KB Controller Pak
• Graphics SGI RCP @ 62.5 MHz
• Sound 16-bit, 48 or 44.1 kHz stereo
• Controller: Nintendo 64 controller
• Power: Switching power supply, 12 V and 3.3 V DC
• Dimensions 2.87 in × 10.23 in × 7.48 in (72.9 mm × 259.8 mm × 190.0 mm)
• Mass 2.42 lb (1.10 kg)
• Best-selling game: Super Mario 64, 11.62 million (as of May 21, 2003)
•  The Nintendo 64 was discontinued in 2002

Recap

• Power supply
• JRC NJD-4662
• https://console5.com/store/console-cap-kits/nintendo/n64.html?cat=405
• C2 47uF 400v
• C4 82uF 35v
• C8 470uF 25v
• C9 2200uF 16v
• C10 270uF 10v
• C14 10uF 25v

• Board
• NUS-CPU(P)-01 PAL EU 220V
• https://boardmaps.silvestron.com/nintendo-64/NUS-CPU-01
• C15 220uF 10v
• C16 220uF 10v
• C24 33uF 25v
• C25 10uF 16v
• C26 10uF 16v
• C28 33uF 25v
• C33 68uF 10v
• C34 10uF 16v
• C73 68uF 10v
• C81 68uF 10v
• C128 10uF 16v
• C130 68uF 10v
• C131 68uF 10v
• C134 68uF 10v
• C140 68uF 10v
• C141 68uF 10v
• C142 33uF 25v
• C145 68uF 10v
